Connector(s)
Connector A
1 - Mini-DisplayPort (20 pin)
Connector B
1 - DisplayPort (20 pin)
Environmental
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
0°C to 50°C (32°F to 122°F)
Humidity
0%RH ~ 85%RH
Hardware
Number of Conductors
19
Connector Plating
Gold
Cable Jacket Material
PVC - Polyvinyl Chloride
Cable Shield Material
Aluminum-Mylar Foil with Braid
Packaging Information
Package Height
1.4 cm [0.6 in]
Package Length
22.0 cm [8.7 in]
Shipping (Package) Weight
82.0 g [2.9 oz]
Package Width
19.5 cm [7.7 in]
Package Quantity
1
Performance
Video Revision
DisplayPort 1.4
Maximum Cable Length
2 m [6.6 ft]
Physical Characteristics
Color
Black
Product Height
1.3 cm [0.5 in]
Product Length
2.0 m [6.6 ft]
Product Width
2.0 cm [0.8 in]
Weight of Product
72.0 g [2.5 oz]
Wire Gauge
34 AWG
Cable Length
2 m [6.6 ft]
Cable OD
4.5 mm [0.2 in]
What's in the Box
Included in Package

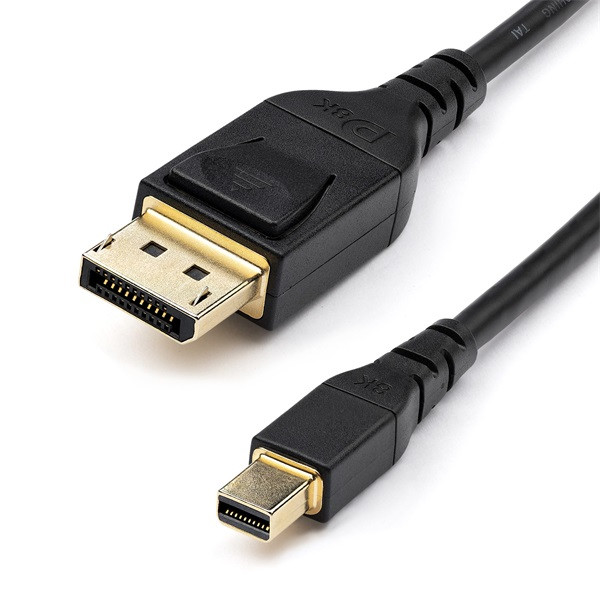

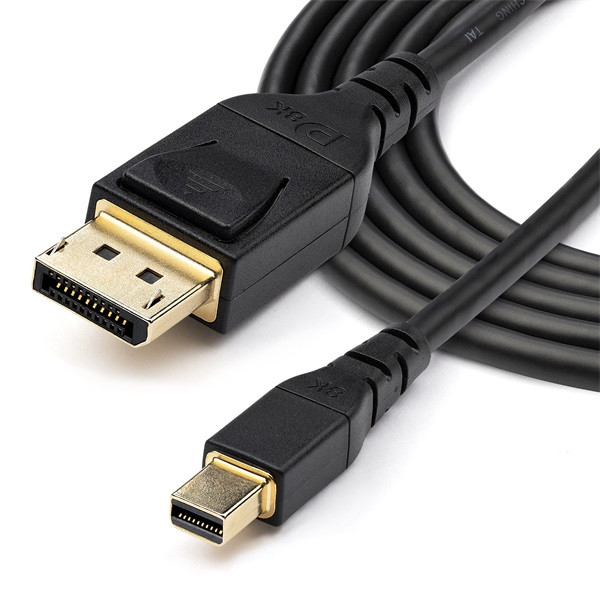

1 - Mini Displayport to Displayport Cable
