Connector(s)
Connector A
1 - Mini-DisplayPort (20 pin)
Connector B
1 - HDMI (19 pin)
Environmental
Operating Temperature
5°C to 35°C (41°F to 95°F)
Storage Temperature
-25°C to 70°C (13°F to 149°F)
Humidity
-25°C to 85°C (77°F to 185°F) at 80% - 95%
Hardware
Active or Passive Adapter
Active
AV Input
Mini DisplayPort - 1.4
Ports
1
AV Output
HDMI - 2.0
Audio
Yes
Industry Standards
DPCP (DisplayPort Content Protection)
HDCP 2.2 (High Definition Content Protection)
DisplayPort 1.2
HDMI 2.0
Chipset ID
Parade - PS176
Packaging Information
Package Height
1,0 cm [0,4 in]
Package Length
22,0 cm [8,7 in]
Shipping (Package) Weight
28,0 g [1,0 oz]
Package Width
20,0 cm [7,9 in]
Package Quantity
1
Performance
Audio Specifications
HDMI - 7.1 Channel Audio
Maximum Cable Distance To Display
7 m [23,0 ft]
Maximum Digital Resolutions
4K x 2K @ 60 Hz
Supported Resolutions
4k x 2K (Ultra HD) @ 60 Hz
1920x1200
1920x1080 (1080p)
1280x720 (720p)
Wide Screen Supported
Yes
Physical Characteristics
Weight of Product
18,0 g [0,6 oz]
Color
Black
Cable Length
148 mm [5,8 in]
Product Length
15,2 cm [6,0 in]
Product Width
2,2 cm [0,9 in]
Product Height
1,0 cm [0,4 in]
Special Notes / Requirements
Note
This video adapter is not compatible with cables that use RedMere™ technology.
What's in the Box
Included in Package

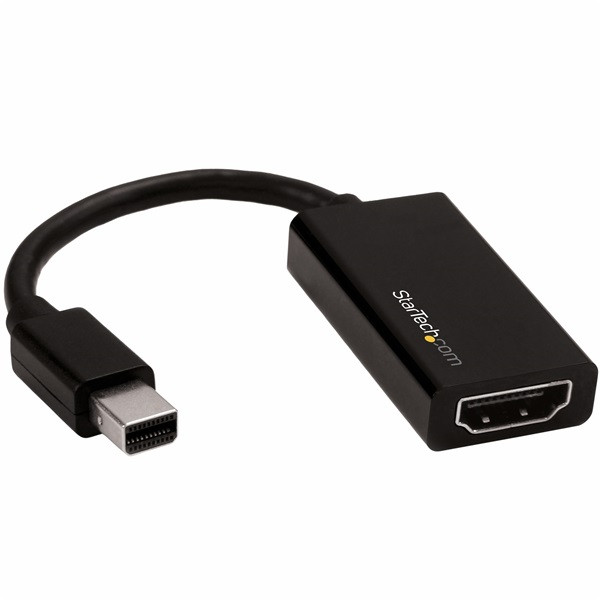

1 - Mini DisplayPort to HDMI adapter
