Connector(s)
Connector A
1 - HDMI
1 - USB 2.0 Type-A (4 pin, 480Mbps)
Connector B
1 - DisplayPort
Environmental
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-10°C to 80°C (14°F to 176°F)
Humidity
10~85% RH (non-condensing)
Hardware
Active or Passive Adapter
Active
AV Input
HDMI
AV Output
DisplayPort - 1.2
Audio
Yes
Chipset ID
Lontium - LT6711A
Packaging Information
Package Length
4.9 in [12.5 cm]
Package Width
8.9 in [22.5 cm]
Package Height
0.5 in [1.3 cm]
Shipping (Package) Weight
1.5 oz [43.0 g]
Package Quantity
1
Performance
Maximum Digital Resolutions
3840 x 2160 @ 60Hz
Wide Screen Supported
Yes
Audio Specifications
DisplayPort - 2 Channel Audio
Physical Characteristics
Color
Gray
Product Length
0.8 in [2.0 cm]
Product Width
14.4 in [36.5 cm]
Product Height
0.4 in [1.1 cm]
Weight of Product
1.3 oz [38.0 g]
Accent Color
Black
Cable Length
11.8 in [30 cm]
Power
Power Source
USB-Powered
Input Voltage
5V DC
Software
OS Compatibility
No Drivers or Software Required
Special Notes / Requirements
Note
To achieve 4K 60Hz, both the source and display must support this resolution and refresh rate
What's in the Box
Included in Package

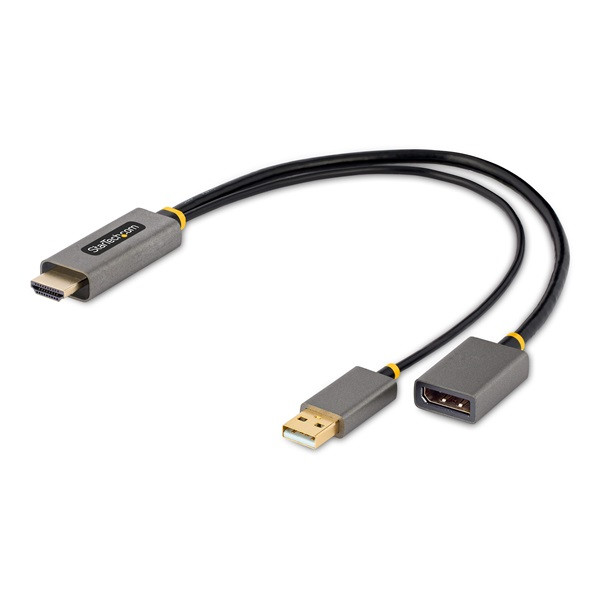

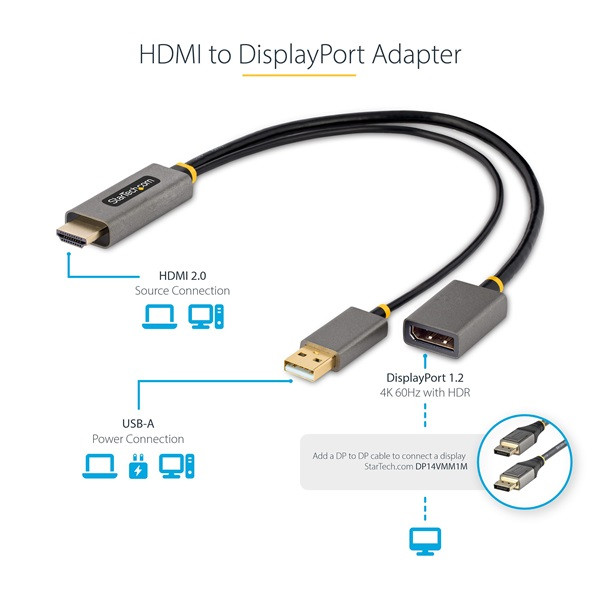

1 - HDMI to DisplayPort Adapter
