| CPU |
Intel® Xeon® W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz) |
| CPU Architecture |
64-bit x86 |
| Memory Slot |
4 x Long-DIMM DDR4
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
|
| Flash Memory |
5GB (Dual boot OS protection) |
| Drive Bay |
12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
|
| Drive Compatibility |
3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
2.5-inch bays:
2.5-inch SATA solid state drives |
| Hot-swappable |
Yes |

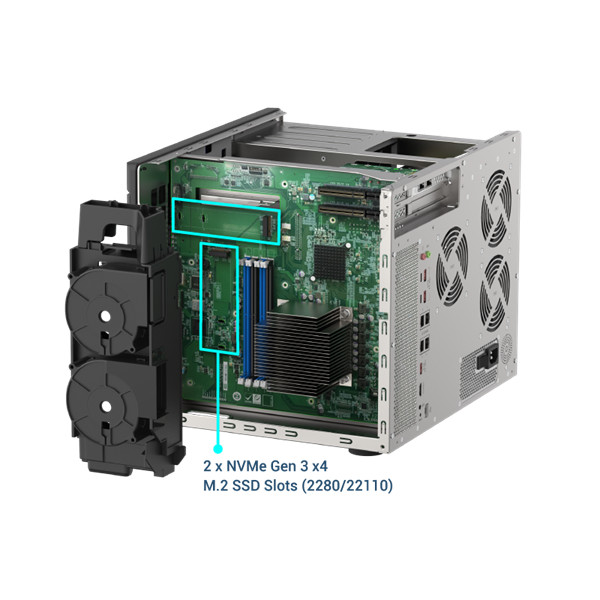

| M.2 SSD Slot |
2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots |
| SSD Cache Acceleration Support |
Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) |
4 (also support 10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) |
Optional via an adapter |
| 10 Gigabit Ethernet Port |
2 x 10GBASE-T (10G/1G) |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| Graphic Processors |
Intel® UHD Graphics P630 |
| Floating Point Unit |
Yes |
| Encryption Engine |
(AES-NI) |
| Hardware-accelerated Transcoding |
Yes |
| System Memory |
32GB ECC UDIMM DDR4 (2 x 16 GB) |
| Maximum Memory |
128 GB (4 x 32 GB) |
| 25 Gigabit Ethernet Port |
Optional via an adapter |
| Jumbo Frame |
Yes |
| Thunderbolt Port |
Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter |
| PCIe Slot |
3
Slot 1: PCIe Gen3 x8
Slot 2: PCIe Gen3 x4
Slot 3: PCIe Gen3 x4
*Slot 1 is preinstalled with a 2-port 10GbE network adapter.
|
| USB 3.2 Gen 2 (10Gbps) Port |
2 x Type-C
4 x Type-A |
| HDMI Output |
1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
| Audio Input |
- (No longer available on units manufactured on or after 2021/1/1) |
| Audio Output |
- (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1) |

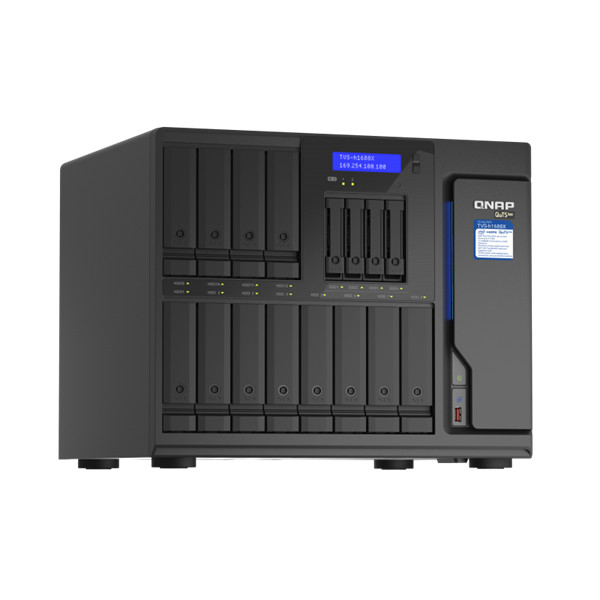

| Form Factor |
Tower |
| LED Indicators |
System status, LAN, USB, Disk 1~16, M.2 SSD 1~2 |
| LCD Display/ Button |
Yes |
| Buttons |
Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) |
303,84 × 369,89 × 319,8 mm |
| Weight (Net) |
13.41 kg |
| Weight (Gross) |
16.3 kg |
| Operating temperature |
0 - 40°C (32°F - 104°F) |
| Relative Humidity |
5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit |
550W PSU, 100~240V |
| Power Consumption: HDD Sleep Mode |
91.26 W |
| Power Consumption: Operating Mode, Typical |
108.67 W
Tested with drives fully populated.
|

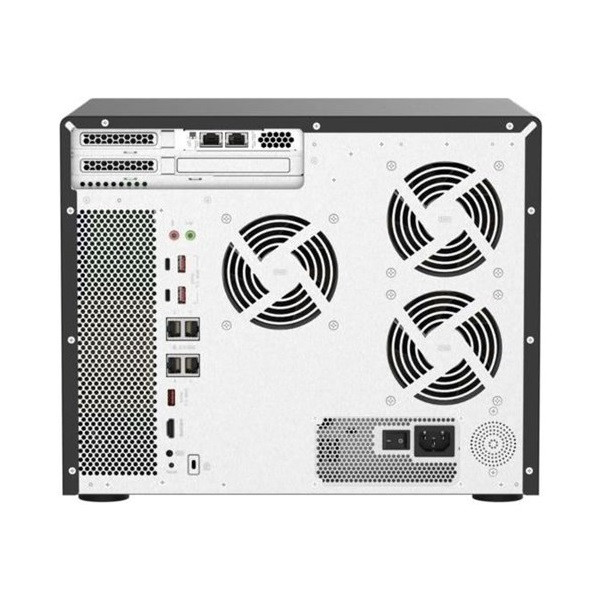

| Fan |
System fan: 3 x 80mm, 12VDC
CPU fan: 2 x 97mm, 12VDC |
| Sound Level |
25.8 db(A) |
| System Warning |
Buzzer |
| Kensington Security Slot |
Yes |
