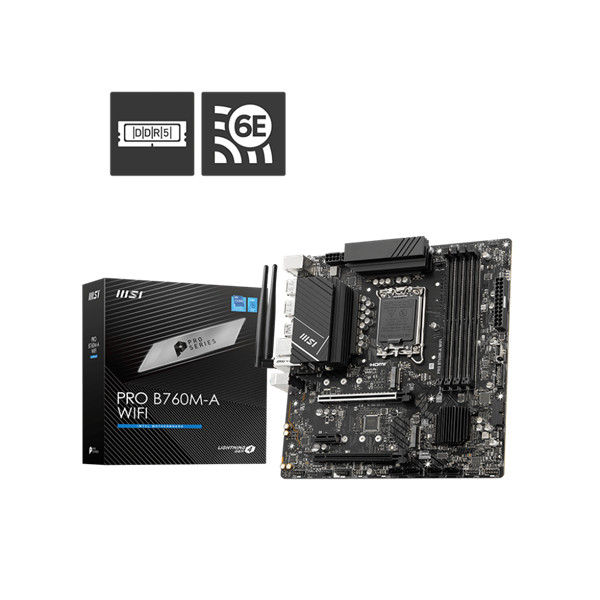

MSI Alaplap S1700 PRO B760M-A WIFI Intel B760M, mATX

Name: MSI Alaplap S1700 PRO B760M-A WIFI Intel B760M, mATX
Brand: MSI PCC
SKU: CS_344575
Price: 102340 HUF
Availability: InStock

Cikkszám:

CS_344575

Rendelhető

102 340 Ft

Részletek

CHIPSET	INTEL B760
CPU SUPPORT	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
MEMORY	4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel^® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS	1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
STORAGE	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear)
LAN	Realtek^® RTL8111H Gigabit LAN
AUDIO	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio

Adatok

Gyártó:

MSI PCC

Gyártói cikkszám:

PRO B760M-A WIFI

EAN:

4711377059572

EAN:

4711377059572

Garancia:

36 hónap

Gyártó:

MSI COMPUTER

Wireless:

Nincs

HDMI:

Van

D-Sub:

Nincs

Kivitel:

Dobozos

Memória órajel:

6000

Memória típus:

DDR5

DVI:

Nincs

Chipset gyártó:

Intel

Display Port:

Van

Thunderbolt:

Nincs

USB 2.0:

USB 3.1:

Párhuzamos port:

Nincs

Soros port:

Nincs

Foglalat típusa:

S1700

SATA III:

Quad Channel:

Nincs

M.2 foglalat:

Van

Audio:

7.1 HD

Grafikus foglalat:

PCI-Ex16 3.0

Form Factor:

mATX

LAN1:

100/1000/2500 Mb/s

Max memória:

192

Memória foglalatok száma:

Raid:

Igen

PCI foglalatok száma:

PCI-E foglalatok száma:

Tömeg:

1,23 kg/db

MSI Alaplap S1700 PRO B760M-A WIFI Intel B760M, mATX

102 340 Ft
