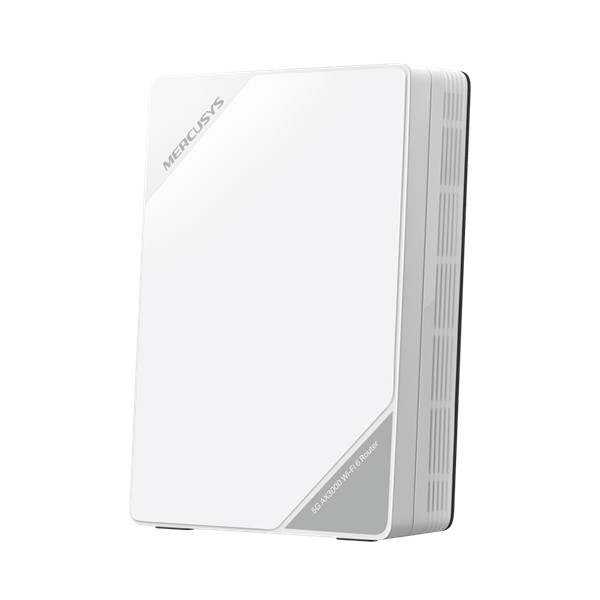

MERCUSYS 4G/5G Modem + Wireless Router AX3000 1xWAN/LAN(2500Mbps) +1xLAN(1000Mpbs), MB520-5G

IEEE 802.11ax/ac/a/b/g/n

5 GHz, 2.4 GHz

2402 Mbps at 5 GHz

574 Mbps at 2.4 GHz

5 GHz:

11ax HE20: -64 dBm

11ax HE40: -61 dBm

11ax HE80: -59 dBm

11ax HE160: -56 dBm

11ac VHT20: -70 dBm

11ac VHT40: -67 dBm

11ac VHT80: -64 dBm

2.4 GHz:

11ax HE20: -66 dBm

11ax HE40: -62 dBm

11ac VHT20: -71 dBm

11ac VHT40: -67 dB

EIRP (CE):

≤20dbm(2.4GHz);

≤23dbm(5G band1/band2); ≤30dbm(5G band3)

WPA-PSK / WPA2-PSK / WPA3-SAE

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics

190 × 130 × 69.7 mm

(7.5 × 5.1 × 2.7 in)

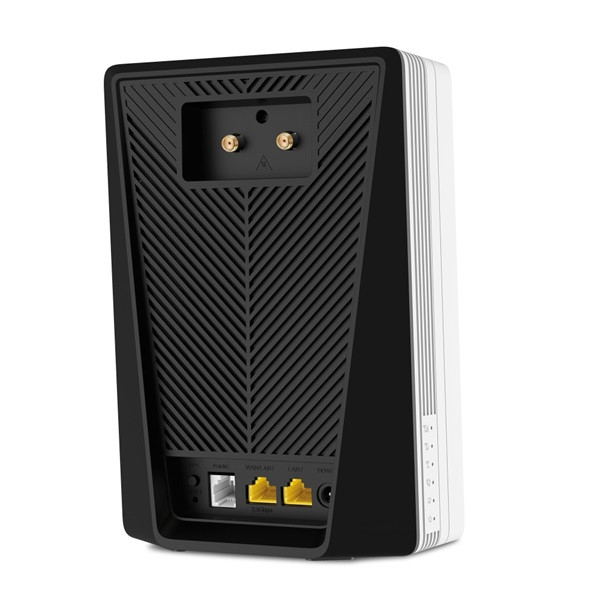

1× 2.5 Gbps WAN/LAN Port

1× 1 Gbps LAN Port

1× RJ11 Phone Port

1× Nano SIM Card Slot

2× SMA Antenna Ports

WPS, Reset Button

5G:

N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78

(2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)

FDD-LTE:

B1/B3/B5/B7/B8/B20/B28

(2100/1800/850/2600/900/800/700 ΜHz)

TDD-LTE:

B38/B40/B41/B42/B43

(2600/2300/2500/3500/3700 MHz)

DC-HSDPA/HSPA+/HSPA/UMTS:

B1/B5/B8

(2100/850/900 MHz)

Server

5G AX3000 Wireless Dual Band Router (MB520-5G)

Power Adapter

RJ45 Ethernet Cable

RJ11 Phone Cable

Quick Installation Guide

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~60°C (-40°F~140°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
