Feature
Product Description

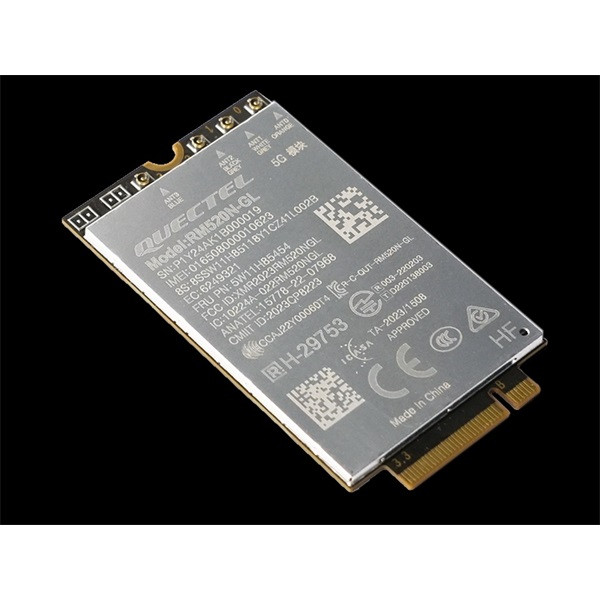

ThinkPad Quectel RM520N-GL 5G M.2 WWAN Module is a 5G NR/LTE-FDD/LTE-TDD/UMTS/HSPA+ wireless communication module with receive diversity. It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks. RM520N-GL is a standard M.2 Key-B WWAN module.
Top Features
- A 5G NR/LTE-FDD/LTE-TDD/UMTS/HSPA+ wireless communication module with receive
- diversity
- Supports embedded operating systems such as Windows, Linux and Android
- Provides GNSS function and optional eSIM function
- PCI Express M.2 Interface
- Compliant with ISO/ IEC 7816-3, and MIPI, etc
- Dimension: 30mm*52mm*1.5mm
- Weight: approx. 8.7 g
Tech Specs
| Minimum Relative Humidity (%) |
5% |
| Maximum Relative Humidity (%) |
95% |
| JAN |
4582763536522 |
| EAN |
0195892105855 |
| UPC |
195892105855 |
| Warranty Type |
Customer Replaceable Unit (CRU) |
| Warranty Period |
1 Year |
| Other Physical Specifications |
Interface: M.2 Key-B |
| Other Operating Environment |
Extended operating temperature: –40? to +85? Storage temperature: –40? to +90? |
| Other Electrical Specifications |
Antenna interface: x4 (Main, Rx-diversity/ GNSS, MIMO1, MIMO2)
Build in eSIM
Low power mode supported |
| Maximum Operating Temperature |
+75? |
| Minimum Operating Temperature |
-30? |
| Packed Weight |
0.03kg |
| Packed Dimensions (L x D x H) |
53*144*177 |
| Package Type |
Brown box |
| Hardware Requirements |
PCIe M.2 Interface |
| Carriers |
AT&T/ T-Mobile/ Verizon/ Vodafone/ EE/ Swisscom/ Deutsche Telekom/ Telefonica/ NTT Docomo/ KDDI/ Softbank |
| Agency Approvals |
NCC/ ANATEL/ SRRC/ NAL/ CCC/ CE/ FCC/ IC/ RCM/ PTCRB/ GCF/ KC/ JATE/ TELEC/ NBTC/ IMDA/ ICASA |
| Shipment Group |
WWAN module Warranty poster |
| Included Accessory |
|
| Product Weight |
8.7g |
| Height |
2.3mm |
| Depth |
30mm |
| Length |
52mm |
| Voltage |
Supply voltage: 3.135–4.4 V Typical supply voltage: 3.3 V |
| Supported Band |
5G 4G: FDD LTE, TDD LTE 3G: WCDMA GNSS |
| Supported OS |
Windows 10 Windows 11 |
| Brand |
ThinkPad |
Compatibility
Operating System
OS Independent
Compatible Machines
| Description |
ID |
Footnote |
| ThinkPad P16 Series-P16v G2 |
21KX |
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
| 21KY |
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
| ThinkPad T14 Series-T14s AMD G6 |
21M1 |
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
| 21M2 |
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
| ThinkPad T14 Series-T14s G5 |
21LS |
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
| 21LT |
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
