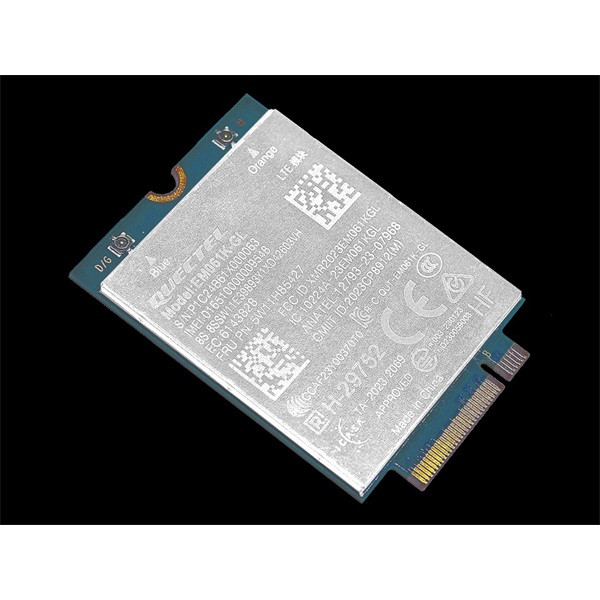

Lenovo ThinkPad ACC - Quectel EM061K-GL LTE-A CAT6 M.2 WWAN Module

Cikkszám:
CS_358295
Lenovo ThinkPad ACC - Quectel EM061K-GL LTE-A CAT6 M.2 WWAN Module
Lenovo ThinkPad ACC - Quectel EM061K-GL LTE-A CAT6 M.2 WWAN Module
Rendelhető
58 370 Ft
Részletek

Feature

Product Description

ThinkPad Quectel EM061K-GL LTE-A CAT6 M.2 WWAN Module is an LTE advanced category 6 module. This module supports a theoretical peak rate of 300 Mbps in the downlink and a theoretical peak data rate of 50Mbps in the uplink. Designed in M.2 form factor, the module facilitates customers' migration between different modules. In addition, it provides quicker, more accurate and more dependable positioning capability.

Top Features

  • LTE-A CAT6 module with M.2 form factor
  • Built-in eSIM (optional), DSSA
  • Worldwide LTE-A and UMTS/ HSPA+ coverage
  • USB 2.0 interface
  • Dimension: 30mm*42mm*2.3mm

Tech Specs

JAN 4582763354157
EAN 0195892103172
UPC 195892103172
Warranty Type Customer Replaceable Unit (CRU)
Warranty Period 1 Year
Other Physical Specifications Interface: M.2 Key-B
Other Operating Environment Extended operating temperature: –40? to +85? Storage temperature: –40? to +90?
Other Electrical Specifications Antenna Connector: WWAN Antenna x 2 Protocol Stack: IPV4/IPV6 Firmware Update: USB
Maximum Relative Humidity (%) 95%
Minimum Relative Humidity (%) 5%
Maximum Operating Temperature 75?
Minimum Operating Temperature -25?
Packed Weight 0.03kg
Packed Dimensions (L x D x H) 53*144*177
Package Type Brown box
Hardware Requirements USB2.0 M.2 Interface
Carriers AT&T/ T-Mobile/ Verizon/ Vodafone/ EE/ Swisscom/ Deutsche Telekom/ Telefonica/ NTT Docomo/ KDDI/ Softbank/ CUCC
Agency Approvals NCC*/ ANATEL*/ SRRC*/ NAL*/ CCC*/ CE*/ FCC*/ IC*/ RCM*/ PTCRB*/ GCF*/ UKCA*/ KC*/ JATE*/ TELEC*/ NBTC*/ IMDA*/ ICASA*IMDA*/ ICASA*
Shipment Group WWAN module Warranty poster
Product Weight 6.2g
Height 2.3mm
Depth 30mm
Length 42mm
Voltage 3.135––4.4 V, typ. 3.3
Supported Band LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD:B34/B38/B39/B40/B41 WCDMA:B1/B2/B3/B4/B5/B6/B8/B19
Supported OS Windows 11
Brand ThinkPad

Compatibility

Operating System

OS Independent

Compatible Machines

Description ID Footnote
ThinkPad L13 Series-L13 2-in-1 G5 21LM 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21LN 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad L13 Series-L13 Clam G5 21LB 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21LC 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad L14 Series-L14 AMD G5 21L5 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21L6 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad L14 Series-L14 G5 21L1 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21L2 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad L16 Series-L16 AMD G1 21L7 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21L8 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad L16 Series-L16 G1 21L3 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21L4 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad T14 Series-T14 AMD G5 21MC Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
21MD Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
ThinkPad T14 Series-T14 G5 21ML Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
21MM Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
ThinkPad T14 Series-T14s G5 21LS Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
21LT Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
ThinkPad T16 Series-T16 G3 21MN Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
21MQ Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
ThinkPad X13 series-X13 2-in-1 G5 21LW 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21LX 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad X13 series-X13 G5 21LU 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21LV 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
Adatok
Gyártó:
LENOVO-COM
Gyártói cikkszám:
4XC1Q24438
EAN:
195892103172
EAN:
195892103172
Garancia:
12 hónap
Tömeg:
70 g/db
Lenovo ThinkPad ACC - Quectel EM061K-GL LTE-A CAT6 M.2 WWAN Module
Lenovo ThinkPad ACC - Quectel EM061K-GL LTE-A CAT6 M.2 WWAN Module
58 370 Ft
