| PERFORMANCE |
| Processor |
Intel® Core™ i7-1355U, 10C (2P + 8E) / 12T, P-core 1.7 / 5.0GHz, E-core 1.2 / 3.7GHz, 12MB |
| Graphics |
Integrated Intel® Iris® Xe Graphics |
| Chipset |
Intel® SoC Platform |
| Memory |
16GB Soldered LPDDR5-6400 |
| Memory Slots |
Memory soldered to systemboard, no slots, 8-channel |
| Max Memory |
16GB soldered memory, not upgradable |
| Storage |
512GB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal 2.0 |
| Storage Support |
One drive, up to 2TB M.2 2280 SSD |
| Storage Slot |
One M.2 2280 PCIe® 4.0 x4 slot |
| Card Reader |
None |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC3306 codec |
| Speakers |
Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos® |
| Camera |
FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision |
| Microphone |
4x, Array |
| Battery |
Integrated 57Wh |
| Power Adapter |
65W USB-C® Slim (3-pin) |
| DESIGN |

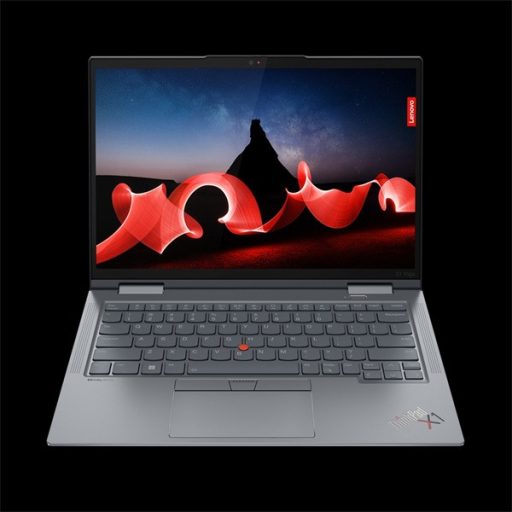

| Display |
14" WQUXGA (3840x2400) OLED 500nits Anti-reflection / Anti-smudge, 100% DCI-P3, DisplayHDR™ 400, Dolby Vision®, Touch |
| Touchscreen |
OGS, 10-point Multi-touch |
| Keyboard |
Backlit, Hungarian |
| Case Color |
Storm Grey |
| Case Material |
Aluminium (Top), Aluminium (Bottom) |
| Pen |
Lenovo® Integrated Pen |
| Dimensions (WxDxH) |
314.4 x 222.3 x 15.53 mm (12.38 x 8.75 x 0.61 inches) |
| Weight |
Starting at 1.38 kg (3.04 lbs) |
| SOFTWARE |
| Operating System |
Windows® 11 Pro, Hungarian / English |
| Bundled Software |
Intel® Connectivity Performance Suite |
| CONNECTIVITY |
| Ethernet |
No Onboard Ethernet |
| WLAN + Bluetooth |
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3 |
| WWAN |
WWAN Upgradable to 4G or 5G |
| SIM Card |
None |
| NFC |
NFC |

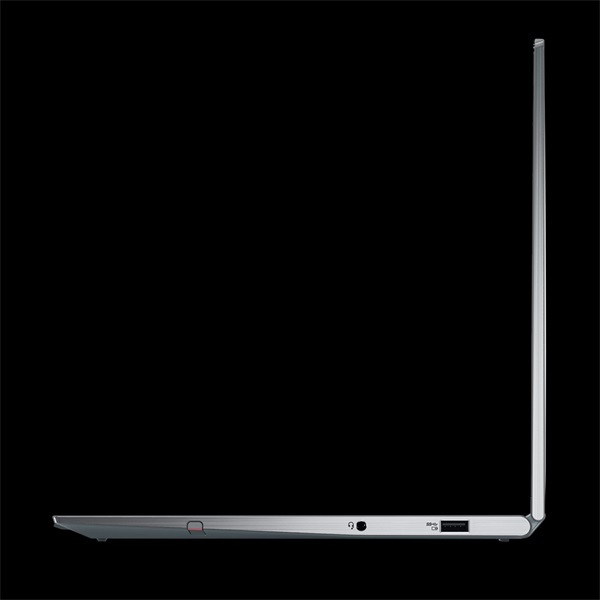

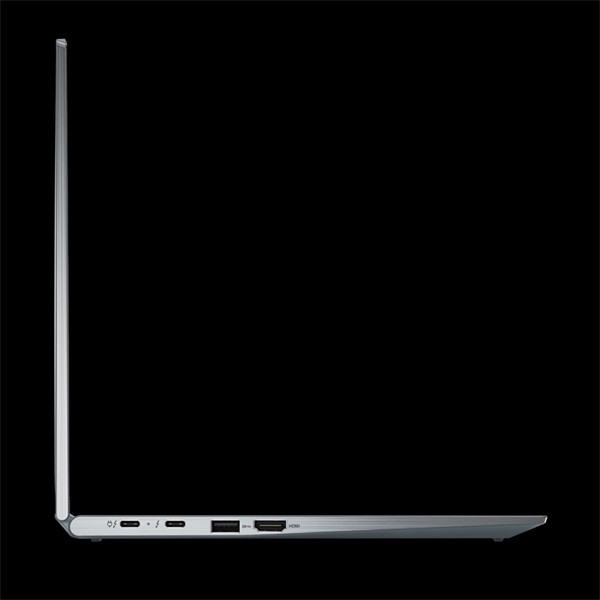

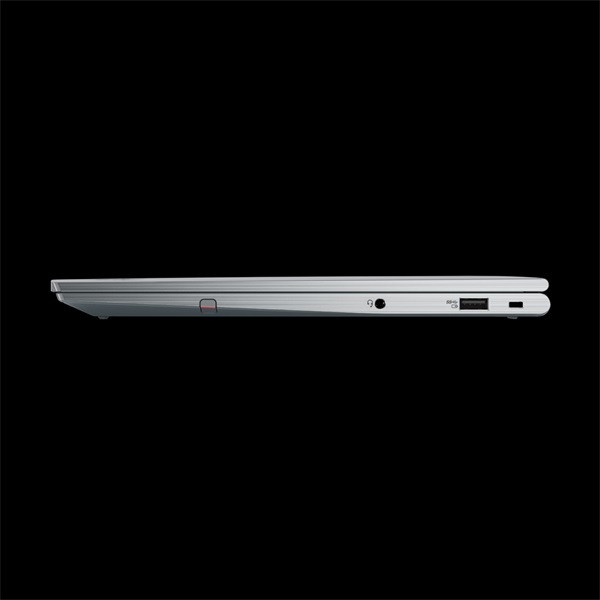

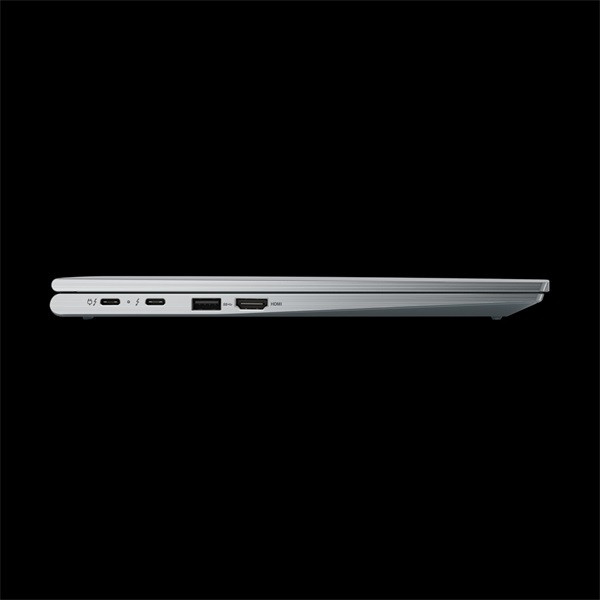

| Standard Ports |
- 1x USB 3.2 Gen 1
- 1x USB 3.2 Gen 1 (Always On)
- 2x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4a)
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
|
| Optional Ports (configured) |
1x Nano-SIM Card Slot |
| Docking |
Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® X1 Yoga® Gen 8 |
| SECURITY & PRIVACY |
| Smart Card Reader |
None |
| Security Chip |
Discrete TPM 2.0 Enabled |
| Fingerprint Reader |
Touch Style, Match-on-Chip, Integrated in Power Button |
| Physical Locks |
Kensington® Nano Security Slot™, 2.5 x 6 mm |
| Other Security |
- Camera privacy shutter
- Glance by Mirametrix®
- IR camera for Windows® Hello (facial recognition)
- Computer Vision-based User Presence Sensing including lock on leave
|
| MANAGEABILITY |
| System Management |
Non-vPro® |
| SERVICE |
| Base Warranty |
3-year, Courier or Carry-in |
| Included Upgrade |
3Y Premier Support WHB (CPN) |
| ACCESSORIES |
| Bundled Accessories |
None |
| CERTIFICATIONS |
| Green Certifications |
- ENERGY STAR® 8.0
- EPEAT™ Gold Registered
- ErP Lot 6/26
- RoHS compliant
- TCO Certified 9.0
|
| Other Certifications |
- Intel® Evo™ Platform
- Eyesafe® Certified 2.0
|
| Mil-Spec Test |
MIL-STD-810H military test passed |
