| PERFORMANCE |
| Processor |
Intel® Core™ Ultra 7 258V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.8GHz, 12MB |
| AI PC Category |
Copilot+ PC |
| NPU |
Integrated Intel® AI Boost, up to 47 TOPS |
| Graphics |
Integrated Intel® Arc™ Graphics 140V |
| Chipset |
Intel® SoC Platform |
| Memory |
32GB Soldered LPDDR5x-8533, MoP Memory |
| Memory Slots |
Memory soldered to systemboard, no slots, dual-channel |
| Max Memory |
32GB soldered memory, not upgradable |
| Storage |
2TB SSD M.2 2280 PCIe® 5.0x4 Performance NVMe® Opal 2.0 |
| Storage Support |
One drive, up to 2TB M.2 2280 SSD |
| Storage Slot |
Models with V or H series processor: one M.2 2280 PCIe® 5.0 x4 slot |
| Card Reader |
None |
| Audio Chip |
Models with V series processor: High Definition (HD) Audio, Realtek® ALC713 codec |
| Speakers |
Stereo speakers, 2W x2, Dolby Atmos® |
| Camera |
FHD 1080p + IR Discrete with Privacy Shutter |
| Microphone |
2x, 360° |
| Battery |
57Wh |
| Power Adapter |
65W USB-C® Slim GaN (3-pin) |
| DESIGN |

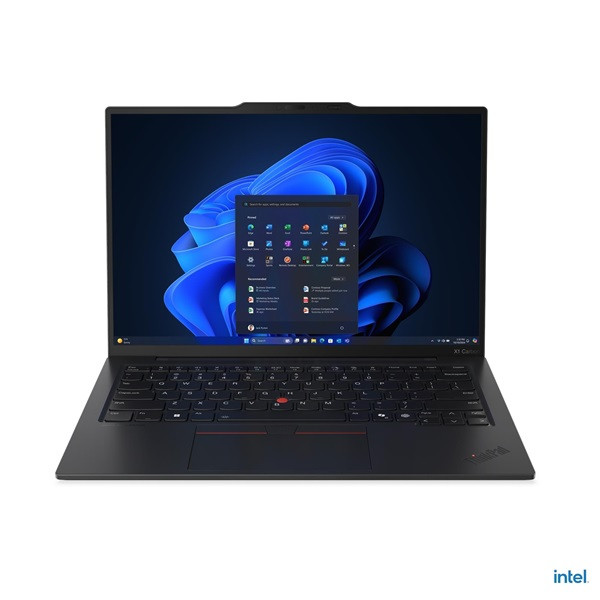

| Display |
14" 2.8K (2880x1800) OLED 500nits Anti-glare / Anti-reflection / Anti-smudge, 100% DCI-P3, 120Hz VRR, DisplayHDR™ True Black 500, Dolby Vision® |
| Touchscreen |
None |
| Keyboard |
Backlit, Hungarian |
| Touchpad |
Haptic Touchpad |
| Case Color |
Black, Paint |
| Case Material |
Carbon Fiber (Top), Aluminium (Bottom) |
| Pen |
Pen Not Supported |
| Dimensions (WxDxH) |
312.80 x 214.75 x 8.08/14.37 (front/rear), 16.95 (maximum) mm; 12.31 x 8.45 x 0.32/0.56 (front/rear), 0.67 (maximum)inches |
| Weight |
Starting at 986 g (2.17 lbs) |
| SOFTWARE |
| Operating System |
Windows® 11 Pro, Hungarian / English |
| Bundled Software |
Intel® Connectivity Performance Suite + Lenovo® AI Now |
| CONNECTIVITY |
| WLAN + Bluetooth |
Intel® Wi-Fi® 7 BE201, 802.11be 2x2 + BT5.4 |
| WWAN |
Quectel RM520N-GL, 5G Sub-6 GHz, with Embedded eSIM |
| SIM Card |
None |
| Ethernet |
No Onboard Ethernet |
| NFC |
None |

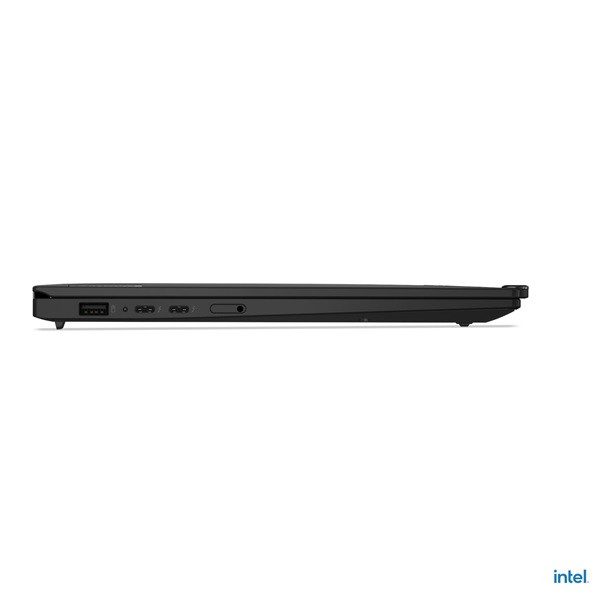

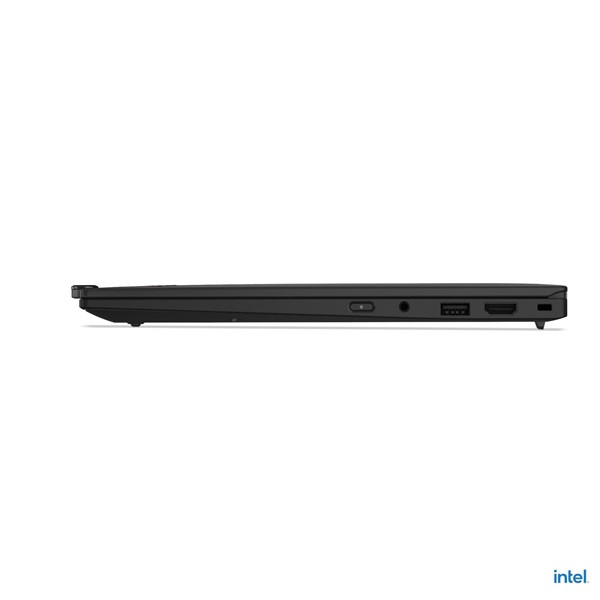

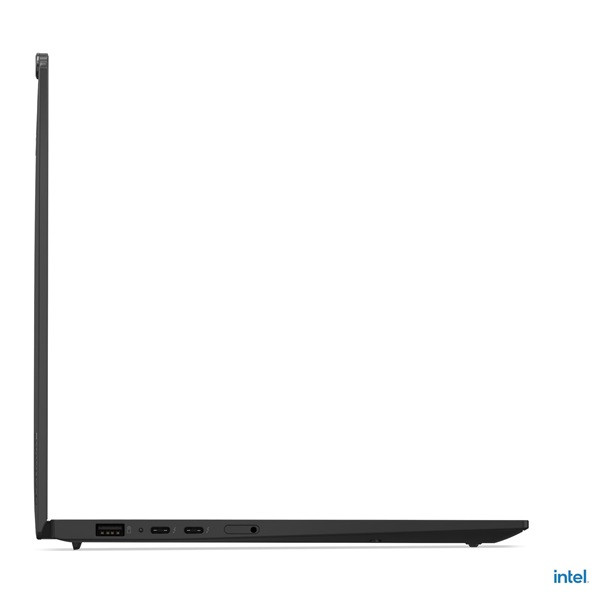

| Standard Ports |
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
|
| Optional Ports (configured) |
1x Nano-SIM Card Slot |
| Docking |
Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 13 |
| SECURITY & PRIVACY |
| Smart Card Reader |
None |
| Security Chip |
Discrete TPM 2.0 Enabled |
| Fingerprint Reader |
Touch Style, Match-on-Chip, in Keyboard Key |
| Physical Locks |
Kensington® Nano Security Slot™, 2.5 x 6 mm |
| Other Security |
- Camera privacy shutter
- IR camera for Windows® Hello (facial recognition)
|
| MANAGEABILITY |
| System Management |
Non-vPro® |
| SERVICE |
| Base Warranty |
3-year, Courier or Carry-in |
| Included Upgrade |
3Y Premier Support WHB (CPN) |
| ACCESSORIES |
| Bundled Accessories |
None |
| CERTIFICATIONS |
| Green Certifications |
- ENERGY STAR® 8.0
- EPEAT™ Gold Registered
- ErP Lot 6/26
- RoHS compliant
- TCO Certified 10.0
|
| Other Certifications |
- Eyesafe® Certified 2.0
- Intel® Evo™ Platform
- SGS High Performance Al PC Certification
|
| Mil-Spec Test |
MIL-STD-810H military test passed |
| MODEL INFORMATION |
| Model |
21NS004KHV |
| Country/Region |
Hungary |
| TopSeller |
Yes |
| EAN / UPC / JAN |
0198156501608 |
| Announce Date |
2025-02-21 |
| End of Support |
2031-06-05 |
