Feature
Product Description

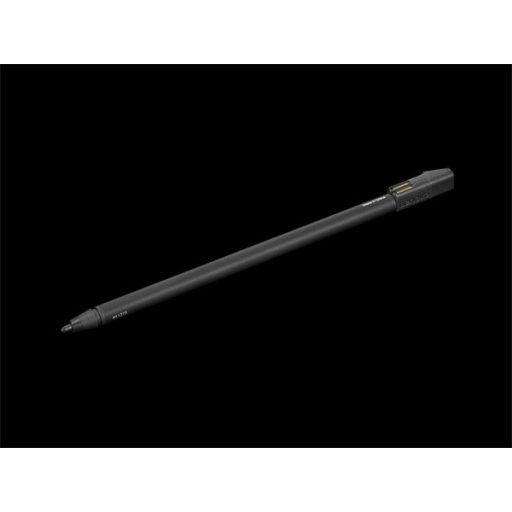

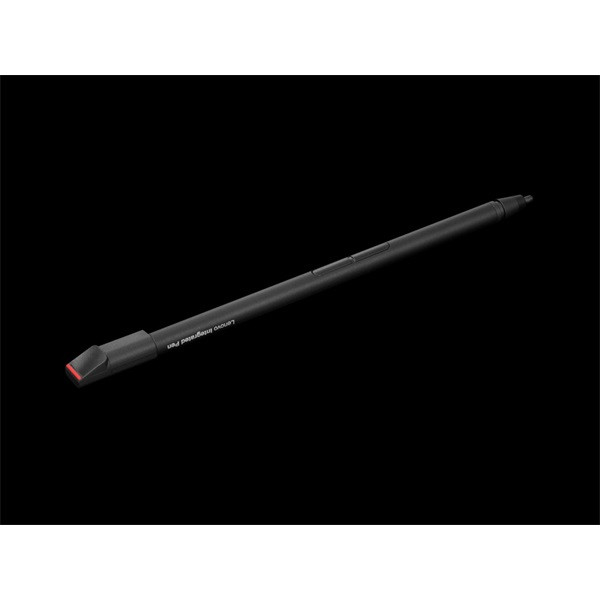

ThinkPad Pen Pro-11 with up to 4096 levels of pressure sensitivity, provides a natural pencil-like and paper experience when you sketch and jot down notes. Users will also enjoy easy access to short-cut functions through two built-in customizable buttons on the base of the pen. This pen can also be conveniently stored and charged in the notebook’s pen slot.
Top Features
- Diameter: 5.3mm, length:119.9mm
- Up to 4096 levels of pressure sensitivity
- Rapid charge 15s for more than 30mins continuous use, and 5 minutes for max 1hour use
- Integrated storage and charging in notebook
- Protocol AES 1.0
- Enter sleep mode when pressure level is 0 and side switch is not pressed within 10mins
Tech Specs
| JAN |
4571591476971 |
| EAN |
0195892027874 |
| UPC |
195892027874 |
| Warranty Type |
1 Year |
| Warranty Period |
Customer Replaceable Unit (CRU) |
| Maximum Relative Humidity (%) |
80% |
| Minimum Relative Humidity (%) |
30% |
| Maximum Operating Temperature |
40? |
| Minimum Operating Temperature |
5? |
| Packed Weight |
80g |
| Packed Dimensions (L x D x H) |
43*73*219mm |
| Included Accessory |
Warranty poster
Lenovo Pen poster |
| Package Type |
Brown Box |
| Shipment Group |
ThinkPad Pen Pro-11 for X13 Yoga Gen 2
Warranty poster
Lenovo Pen poster |
| Product Weight |
3.6 g |
| Diameter |
5.3mm |
| Length |
119.9mm |
| Hardware Requirements |
ThinkPad X13 Yoga Gen 2 |
| Power Requirement |
3.3 V± 5% |
| Agency Approvals |
CE COC ROHS IC VOC NCC FCC EAC ICES |
| Color |
Black |
| Shifting Time to Sleep |
Approximately 10 [min.] Pen operation mode changes from active mode to sleep mode when pressure level is 0 and Side - Switch is not pressed |
| Presure Resolution |
Up to 4096, depends on touch IC’s Fh / W setting |
| Oscillating Frequeqncy |
1800khz ± 5% |
| Touch Technology |
AES 1.0 |
| Input Rating Voltage |
3.3 V |
| Battery Charging Time |
Operating and charging time: 15 seconds charging,more than 36mins, 300 seconds charging,more than 42mins(In the initial state) |
| Battery Life |
Battery Type: EDLC |
| Supported OS |
Windows 10 |
| Brand |
Lenovo |
Compatibility
Operating System
OS Independent
Compatible Machines
| Description |
ID |
Footnote |
| ThinkPad X13 series-X13 Yoga 2nd Generation |
20W8 |
|
| 20W9 |
|
| ThinkPad X13 series-X13 Yoga G3 |
21AW |
109. Only support models that are shipped with integrated pen or have touch screen that support stylus function and meanwhile have pen slot with charging function. |
| 21AX |
109. Only support models that are shipped with integrated pen or have touch screen that support stylus function and meanwhile have pen slot with charging function. |
