| PERFORMANCE |
| Processor |
Intel® Core™ i9-13980HX, 24C (8P + 16E) / 32T, P-core 2.2 / 5.6GHz, E-core 1.6 / 4.0GHz, 36MB |
| AI PC Category |
AI-Ready Workstations |
| Graphics |
NVIDIA® RTX 2000 Ada Generation 8GB GDDR6 |
| Chipset |
Intel® WM790 Chipset |
| Memory |
2x 16GB SO-DIMM DDR5-5600 Non-ECC |
| Memory Slots |
Four DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory |
Models with Non-ECC memory: Up to 192GB (4x 48GB SO-DIMM DDR5-5600 Non-ECC) |
| Storage |
1TB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal 2.0 |
| Storage Support |
Up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 8TB, 4TB each • RAID 0/1 support |
| Storage Slot |
Two M.2 2280 PCIe® 4.0 x4 slots |
| RAID Preset |
None |
| Card Reader |
SD 7.0 Card Reader |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC3306 codec |
| Speakers |
Stereo speakers, 2W x2, Dolby Atmos® |
| Camera |
FHD 1080p + IR Hybrid with Privacy Shutter and Human Presence Detection |
| Microphone |
2x, Array |
| Battery |
Integrated 94Wh |
| Power Adapter |
170W Slim Tip (3-pin) |
| DESIGN |
| Display |
16" WQXGA (2560x1600) IPS 500nits Anti-glare, 100% sRGB, 165Hz, Eyesafe® |
| Touchscreen |
None |
| Color Calibration |
Factory Color Calibration |
| Keyboard |
Backlit, Hungarian |

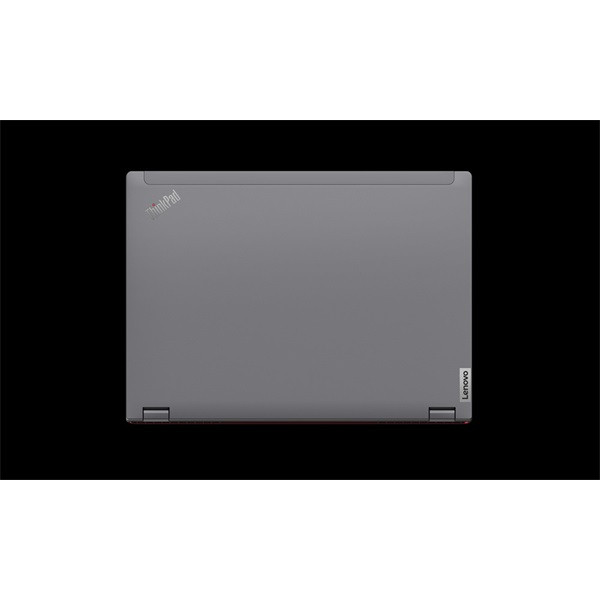

| Case Color |
Storm Grey (Top), Villi Black (Bottom) |
| Case Material |
Aluminium (Top), PPS + 50% GF (Bottom) |
| Pen |
Pen Not Supported |

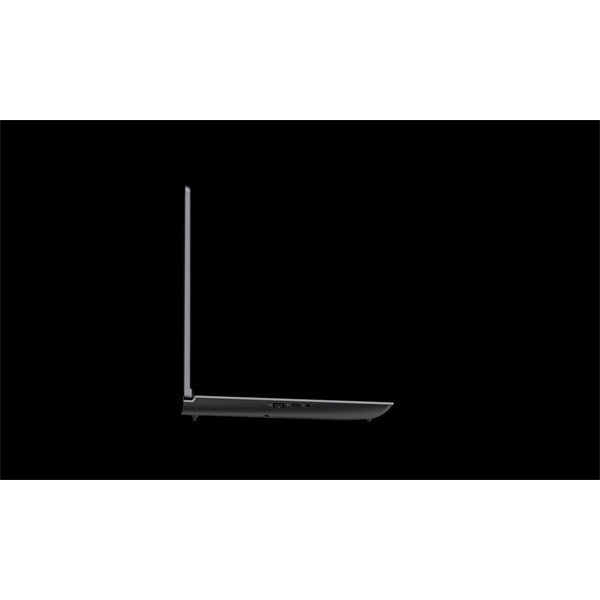

| Dimensions (WxDxH) |
364 x 266 x 30.23 mm (14.3 x 10.5 x 1.2 inches) |
| Weight |
Starting at 2.95 kg (6.5 lbs) |
| SOFTWARE |
| Operating System |
Windows® 11 Pro, Hungarian / English |
| Bundled Software |
None |
| CONNECTIVITY |
| Ethernet |
No Onboard Ethernet |
| WLAN + Bluetooth |
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3 |
| WWAN |
WWAN Upgradable to 4G |
| SIM Card |
None |
| NFC |
None |
| Standard Ports |
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 3.0
- 2x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
- 1x HDMI® 2.1, up to 8K/60Hz or 4K/240Hz (models with discrete graphics)
- 1x Headphone / microphone combo jack (3.5mm)
- 1x SD Express 7.0 card reader
|
| Optional Ports (configured) |
- 1x Smart Card Reader
- 1x Nano-SIM Card Slot
|
| Docking |
Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® P16 Gen 2 |
| SECURITY & PRIVACY |
| Smart Card Reader |
Smart Card Reader |
| Security Chip |
Discrete TPM 2.0 Enabled |
| Fingerprint Reader |
Touch Style, Match-on-Chip, Integrated in Power Button |
| Physical Locks |
Kensington® Nano Security Slot™, 2.5 x 6 mm |
| Other Security |
- Bottom cover tamper detection
- Camera privacy shutter (camera models)
- IR camera for Windows® Hello (facial recognition)
- Ultrasonic Human Presence Detection for IR camera
|
| MANAGEABILITY |
| System Management |
Non-vPro® |
| SERVICE |
| Base Warranty |
3-year, Courier or Carry-in |
| Included Upgrade |
CO2 Offset 0.5 ton, 3Y Premier TP WS WHB (CPN) |
| ACCESSORIES |
| Bundled Accessories |
None |
| CERTIFICATIONS |
| Green Certifications |
- ENERGY STAR® 8.0
- EPEAT™ Gold Registered
- RoHS compliant
- TCO Certified 9.0
|
| Other Certifications |
- Eyesafe® Certified 2.0
- TÜV Rheinland® Low Blue Light
|
| Mil-Spec Test |
MIL-STD-810H military test passed |
