| PERFORMANCE |
| Processor |
AMD Ryzen™ 7 7735HS (8C / 16T, 3.2 / 4.75GHz, 4MB L2 / 16MB L3) |
| Graphics |
Integrated AMD Radeon™ 680M Graphics |
| Chipset |
AMD SoC Platform |
| Memory |
2x 16GB SO-DIMM DDR5-4800 |
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory |
Up to 64GB DDR5-4800 |
| Storage |
1TB SSD M.2 2242 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Storage Support |
Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB |
| Storage Slot |
Two M.2 slots • One M.2 2242 PCIe® 4.0 x4 slot • One M.2 2280 PCIe 4.0 x4 slot |
| Card Reader |
No card reader |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Senary SN6141 codec |
| Speakers |
Stereo speakers, 2W x2, Dolby Atmos®, audio by HARMAN |
| Camera |
FHD 1080p + IR Hybrid with Privacy Shutter |
| Microphone |
2x, Array |
| Battery |
Integrated 57Wh |
| Power Adapter |
65W USB-C® (3-pin) |
| DESIGN |

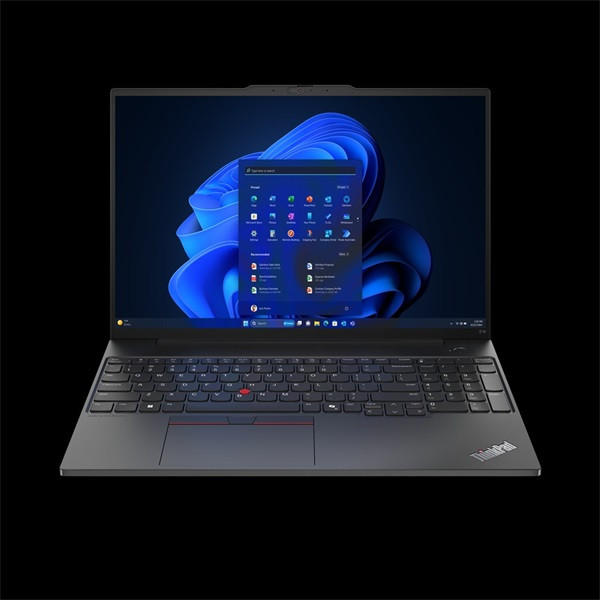

| Display |
16" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC |
| Touchscreen |
None |

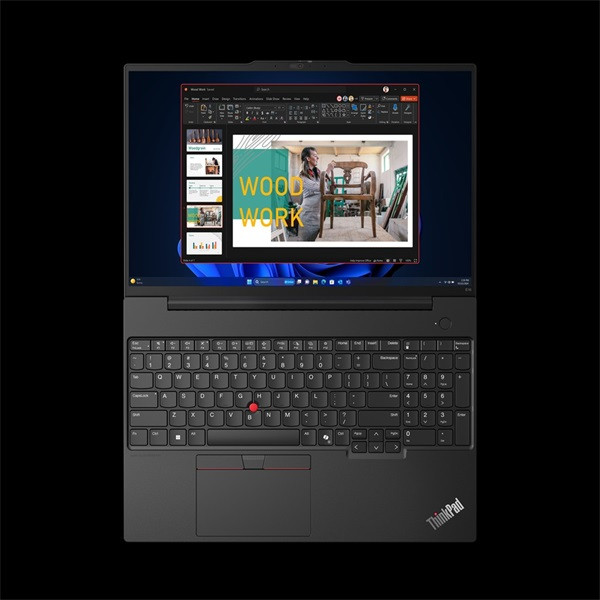

| Keyboard |
Backlit, Hungarian |
| Case Color |
Black |
| Case Material |
Aluminium (Top), Aluminium (Bottom) |
| Pen |
Pen Not Supported |
| Dimensions (WxDxH) |
356.1 x 247.7 x 19.85 mm (14.02 x 9.75 x 0.78 inches) |
| Weight |
Starting at 1.81 kg (3.99 lbs) |
| SOFTWARE |
| Operating System |
None |
| Bundled Software |
None |
| CONNECTIVITY |
| Ethernet |
100/1000M (RJ-45) |
| WLAN + Bluetooth |
Wi-Fi® 6E, 802.11ax 2x2 + BT5.3 |
| WWAN |
Non-WWAN |
| SIM Card |
None |
| NFC |
None |

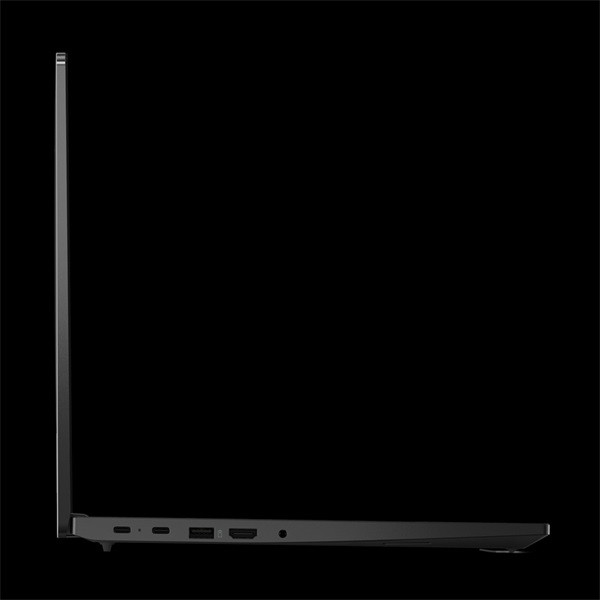

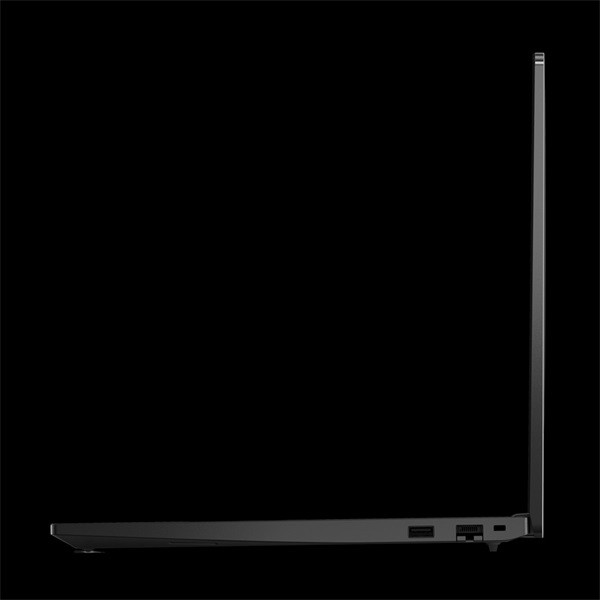

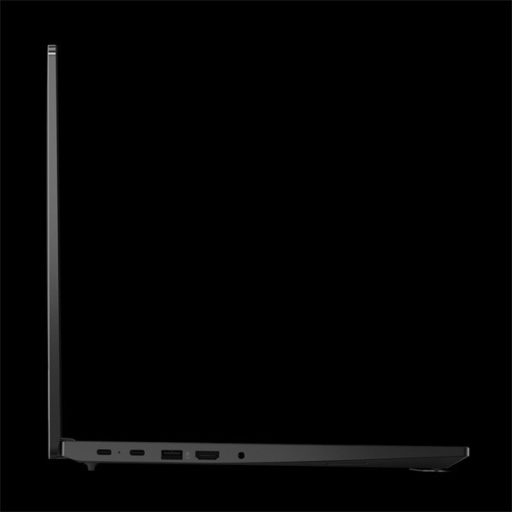

| Standard Ports |
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
- 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with USB PD 3.0 and DisplayPort™ 1.4
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 3.0 and DisplayPort™ 1.4
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
|
| Docking |
Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® E16 Gen 2 (AMD) |
| SECURITY & PRIVACY |
| Smart Card Reader |
None |
| Security Chip |
Discrete TPM 2.0 Enabled |
| Fingerprint Reader |
Touch Style, Match-on-Chip, Integrated in Power Button |
| Physical Locks |
Kensington® Nano Security Slot™, 2.5 x 6 mm |
| Other Security |
- Camera privacy shutter
- IR camera for Windows® Hello (facial recognition)
|
| MANAGEABILITY |
| System Management |
Non-DASH |
| SERVICE |
| Base Warranty |
1-year, Courier or Carry-in |
| Included Upgrade |
3Y Onsite upgrade from 1Y Courier/Carry-in Windchill (CPN) |
| ACCESSORIES |
| Bundled Accessories |
None |
| CERTIFICATIONS |
| Green Certifications |
- ErP Lot 6/26
- RoHS compliant
- TCO Certified 9.0
|
| Other Certifications |
TÜV Rheinland® Low Blue Light (Software Solution) |
| Mil-Spec Test |
MIL-STD-810H military test passed |
