| PERFORMANCE |
| Processor |
Intel® Core™ i5-13420H, 8C (4P + 4E) / 12T, P-core 2.1 / 4.6GHz, E-core 1.5 / 3.4GHz, 12MB |
| Graphics |
Integrated Intel® UHD Graphics |
| Chipset |
Intel® SoC Platform |
| Memory |
1x 16GB SO-DIMM DDR4-3200 |
| Memory Slots |
Two DDR4 SO-DIMM slots, dual-channel capable |
| Max Memory |
Up to 32GB DDR4-3200 |
| Storage |
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Storage Support |
Up to two drives, 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB • M.2 SSD up to 1TB |
| Card Reader |
No card reader |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC256 codec |
| Speakers |
2Wx1 |
| Microphone |
No microphone |
| Power Supply |
65W 89% Adapter |
| DESIGN |
| Keyboard |
USB Calliope Keyboard, Black, Hungarian |
| Mouse |
USB Calliope Mouse, Black |
| Optional Bay |
2.5" HDD Bracket |
| Expansion Slots |
Two M.2 slots (one for WLAN, one for SSD) |
| Case Color |
Black |
| System Fan |
1x System Fan |
| Stand |
None |
| Adapter Cage |
None |
| Toolless Chassis Screw |
Toolless Chassis Screw |
| Mounting |
1x VESA Mount |
| Pen |
Pen Not Supported |
| Form Factor |
Tiny (1L) |
| Dimensions (WxDxH) |
179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches) |
| Weight |
Around 1.11 kg (2.45 lbs) |
| CONNECTIVITY |
| Ethernet |
Integrated 100/1000M |
| WLAN + Bluetooth |
Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2 |
| WWAN |
Non-WWAN |
| Front Ports |
- 1x USB-C® 3.2 Gen 2 (support data transfer and 5V@0.9A charging)
- 1x USB 3.2 Gen 2 (Always On and 5V@2.1A charging)
- 1x headphone / microphone combo jack (3.5mm)
|
| Optional Front Ports (configured) |
None |

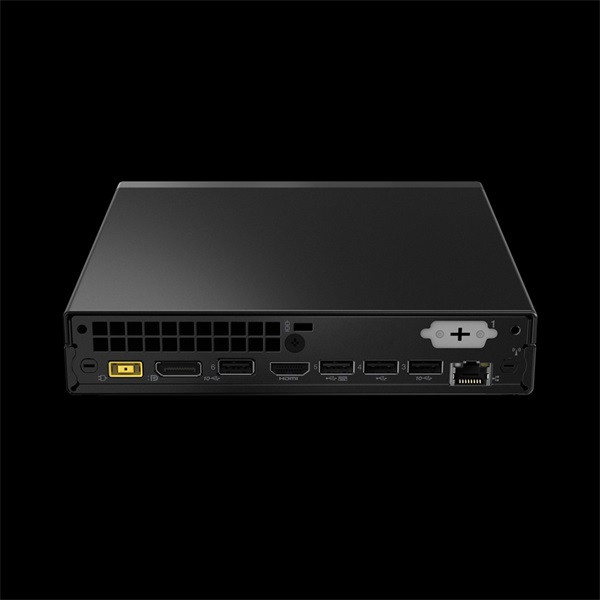

| Rear Ports |
- 2x USB 2.0
- 2x USB 3.2 Gen 2
- 1x HDMI® 2.1 TMDS
- 1x DisplayPort™ 1.4
- 1x Ethernet (RJ-45)
|
| Optional Rear Ports (configured) |
None |
| Monitor Cable |
None |
| SECURITY & PRIVACY |
| Security Chip |
Firmware TPM 2.0 integrated in SoC |
| Physical Locks |
Kensington® Security Slot™, 3 x 7 mm |
| Chassis Intrusion Switch |
Chassis Intrusion Switch |
| MANAGEABILITY |
| System Management |
Non-vPro® |
| SERVICE |
| Base Warranty |
1-year, Onsite |
| Included Upgrade |
3Y Onsite upgrade from 1Y Onsite |
| CERTIFICATIONS |
| Green Certifications |
- ErP Lot 3/7
- RoHS compliant
- TCO Certified 9.0
|
| SOFTWARE |
| Operating System |
None |
| Bundled Software |
None |
| MODEL INFORMATION |
| Product |
ThinKCentre neo 50q Gen 4 |
| Model |
12LN0024HX |
| Country/Region |
Hungary |
| TopSeller |
Yes |
| EAN / UPC / JAN |
0196804559421 |
| Announce Date |
2023-04-18 |
| End of Support |
2029-11-18 |
