| PERFORMANCE |
| Processor |
Intel® Core™ i7-14650HX, 16C (8P + 8E) / 24T, P-core 2.2 / 5.2GHz, E-core 1.6 / 3.7GHz, 30MB |
| Graphics |
NVIDIA® GeForce RTX™ 4060 8GB GDDR6 |
| Chipset |
Intel® HM770 Chipset |
| Memory |
2x 16GB SO-DIMM DDR5-5600 |
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory |
Up to 32GB DDR5-5600 offering |
| Storage |
1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® |
| Storage Support |
Up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB each |
| Storage Slot |
Two M.2 2280 PCIe® 4.0 x4 slots |
| Card Reader |
SD Card Reader |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC3306-CG codec |
| Speakers |
Stereo speakers, 2W x2 woofers and 2W x2 tweeters, Dolby Atmos®, sound by harman/kardon |
| Camera |
FHD 1080p + IR Hybrid with Privacy Shutter |
| Microphone |
2x, Array |
| Battery |
Integrated 80Wh |
| Power Adapter |
300W Slim Tip (3-pin) |
| Special Features |
- AI Chip: LA3
- Modern Standby
|
| DESIGN |
| Display |
16" WQXGA (2560x1600) IPS 400nits Anti-glare, 100% sRGB, 60Hz, Dolby Vision® |
| Touchscreen |
None |
| Color Calibration |
Factory Color Calibration |

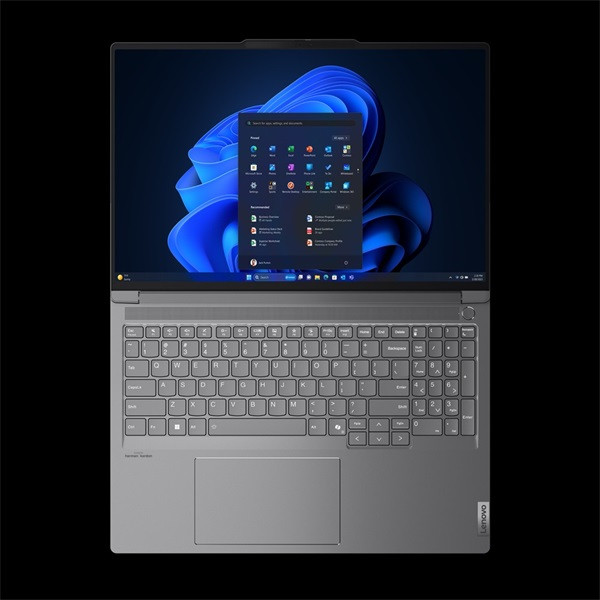

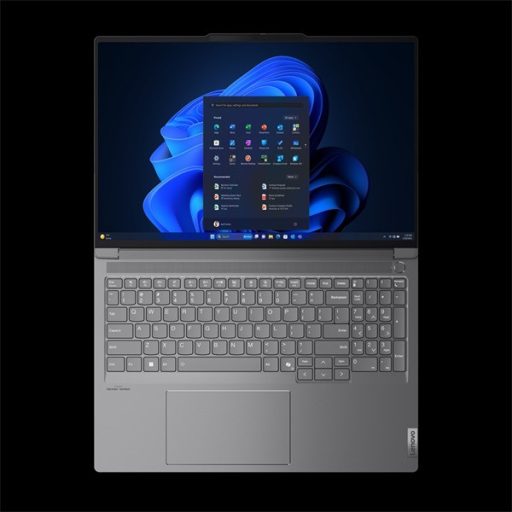

| Keyboard |
Backlit, Hungarian |
| Touchpad |
Buttonless glass surface multi-touch touchpad, supports Precision TouchPad (PTP), 80 x 135 mm (3.15 x 5.31 inches) |
| Case Color |
Storm Grey |
| Surface Treatment |
Anodizing Sandblasting |
| Case Material |
Aluminium (Top), Aluminium (Bottom) |
| Pen |
Pen Not Supported |
| Dimensions (WxDxH) |
354.6 x 258.2 x 19.9 mm (13.96 x 10.17 x 0.78 inches) |
| Weight |
Starting at 2.2 kg (4.85 lbs) |
| SOFTWARE |
| Operating System |
None |
| Bundled Software |
None |
| CONNECTIVITY |
| Ethernet |
No Onboard Ethernet |
| WLAN + Bluetooth |
Wi-Fi® 6E, 802.11ax 2x2 + BT5.3 |
| WWAN |
Non-WWAN |

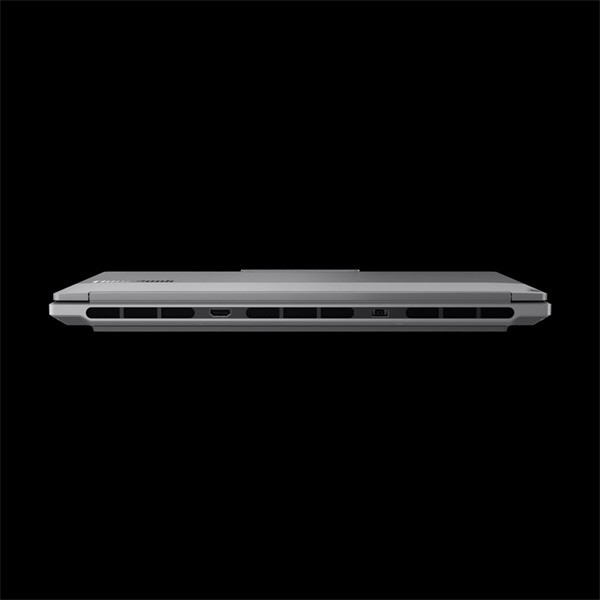

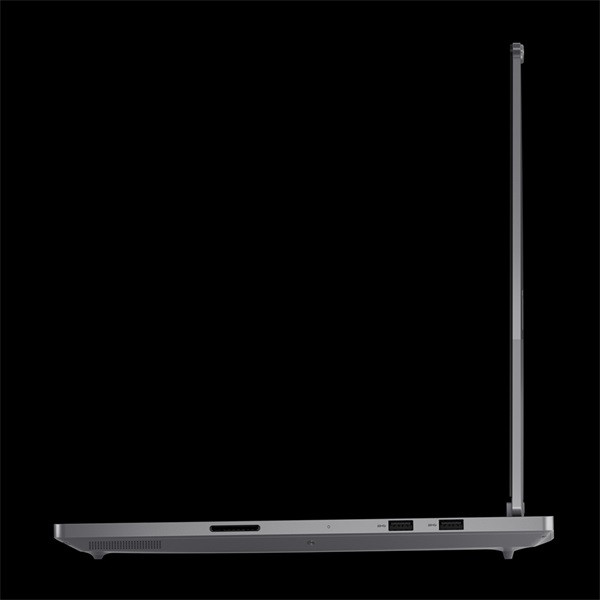

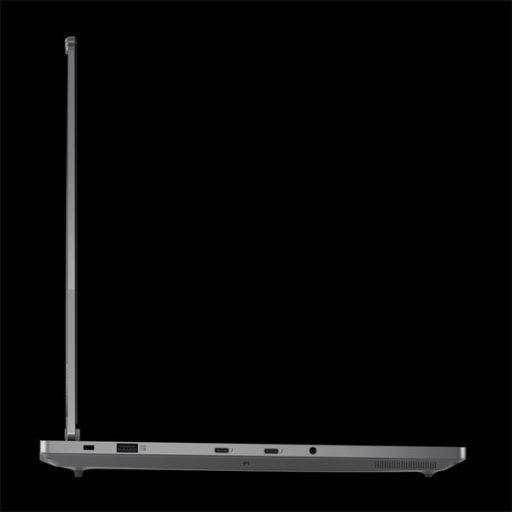

| Standard Ports |
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
- 2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 1.4
- 1x HDMI® 2.1, up to 8K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x SD card reader
- 1x Power connector
|
| Optional Ports (configured) |
None |
| Docking |
Various docking solutions supported via Thunderbolt™. For more compatible docking solutions, please visit Docking for ThinkBook® 16p G5 IRX |
| SECURITY & PRIVACY |
| Security Chip |
Firmware TPM 2.0 Enabled |
| Fingerprint Reader |
Touch Style, Match-on-Chip, Integrated in Power Button |
| Physical Locks |
Kensington® Nano Security Slot™, 2.5 x 6 mm |
| Other Security |
- Camera privacy shutter
- IR camera for Windows® Hello (facial recognition)
|
| SERVICE |
| Base Warranty |
1-year, Courier or Carry-in |
| Included Upgrade |
3Y Onsite upgrade from 1Y Courier/Carry-in Windchill (CPN) |
| ACCESSORIES |
| Bundled Accessories |
None |
| CERTIFICATIONS |
| Green Certifications |
- ENERGY STAR® 8.0
- ErP Lot 6/26
- RoHS compliant
- TCO Certified 9.0
|
| Other Certifications |
- Eyesafe® Certified 2.0
- TÜV Rheinland® Low Blue Light (Hardware Solution)
|
| Mil-Spec Test |
MIL-STD-810H military test passed |
| MODEL INFORMATION |
| Model |
21N5001CHV |
| Country/Region |
Hungary |
| TopSeller |
Yes |
| EAN / UPC / JAN |
197530361579 |
| Announce Date |
2024-03-29 |
| End of Support |
2030-10-22 |
