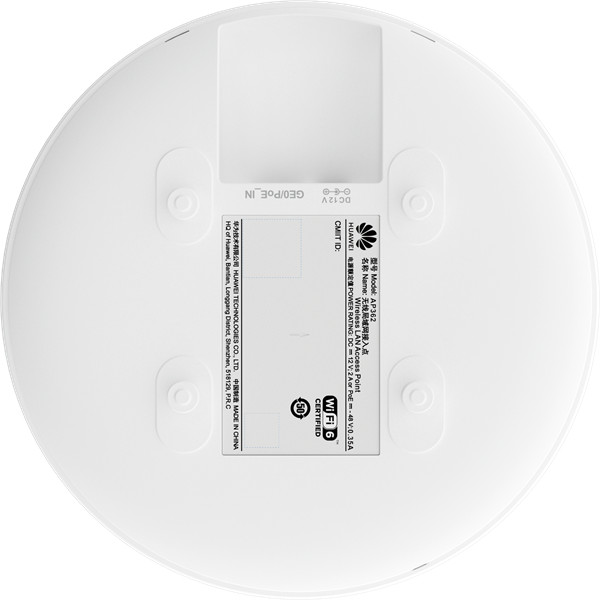

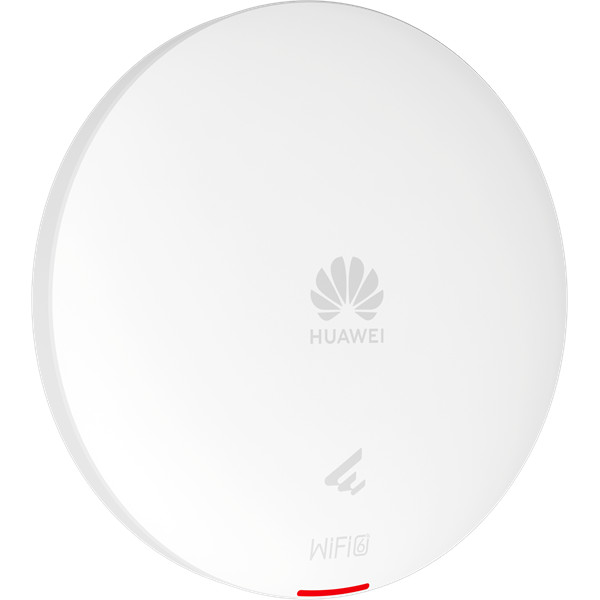

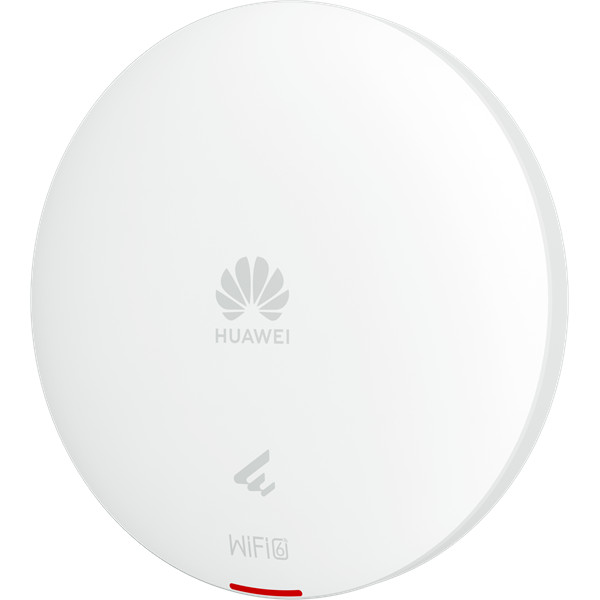

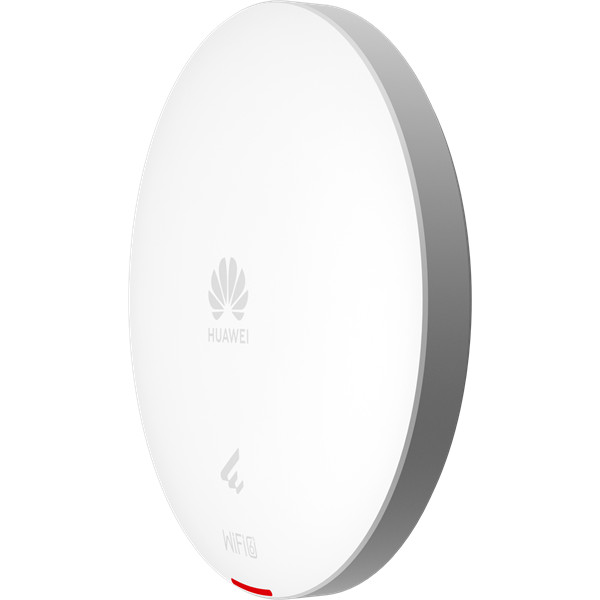

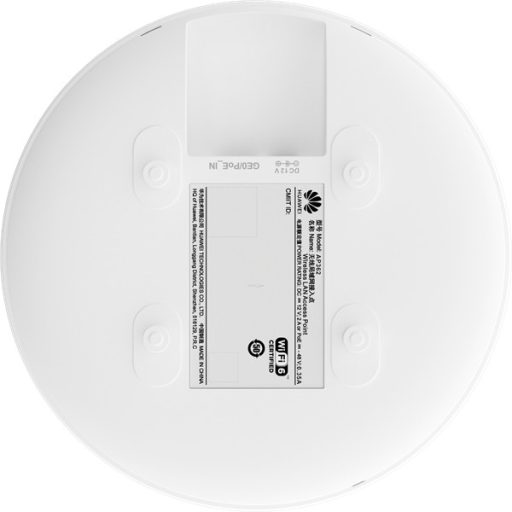

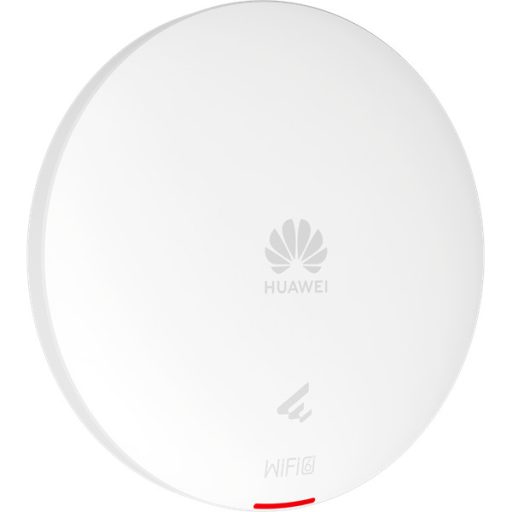

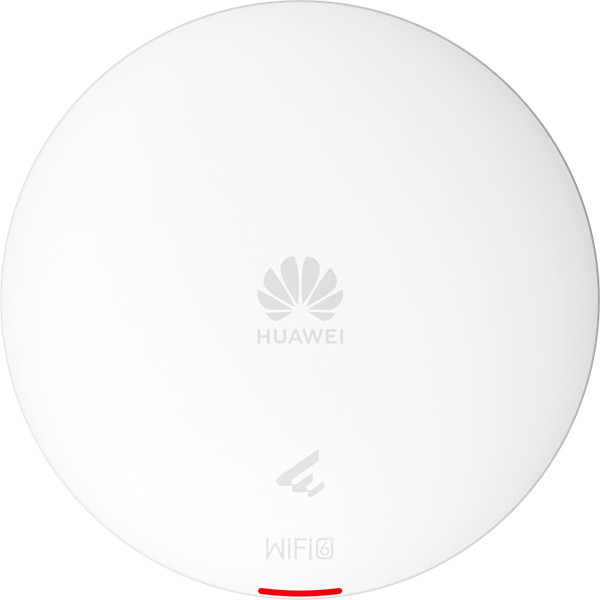

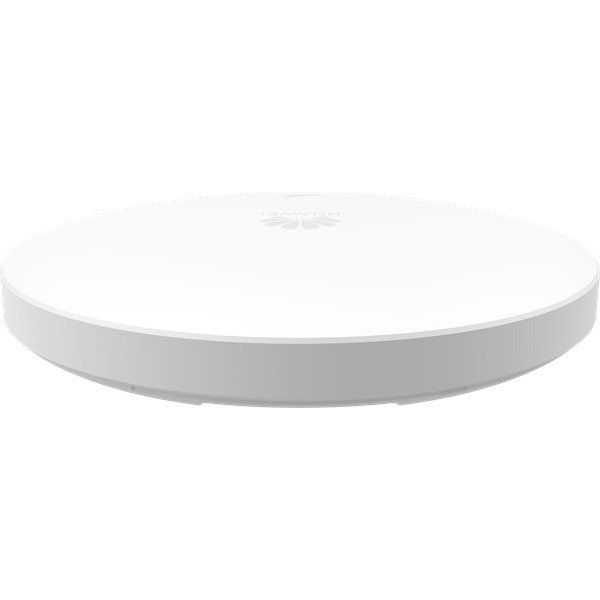

Huawei eKit Wireless Access Point DualBand,WiFi 6,3 Gbps,Smart Antenna,1GE uplink,POE w/o AC,beltéri

Cikkszám:
CS_350146
Huawei eKit Wireless Access Point DualBand,WiFi 6,3 Gbps,Smart Antenna,1GE uplink,POE w/o AC,beltéri
Rendelhető
69 940 Ft
Részletek
Integrated fixed device Y
First supported version V200R021C11
Installation Type Wall,Ceiling,T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 52 mm x 231 mm x 200 mm (2.05 in. x 9.09 in. x 7.87 in.)
Weight without packaging [kg(lb)] 0.46 kg (1.01 lb)
Weight with packaging [kg(lb)] 0.80 kg (1.76 lb)
CPU 2-core, 1.0 GHz
Memory DDR3L 512 MB
Storage NAND Flash 256 MB
Console port None
Maximum power consumption [W] 11.2
Power supply mode DC adapter,PoE
Rated input voltage [V] 12 V
Input voltage range [V] DC: 12 V ± 10% PoE: 802.3af
Service port surge protection [kV] PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C

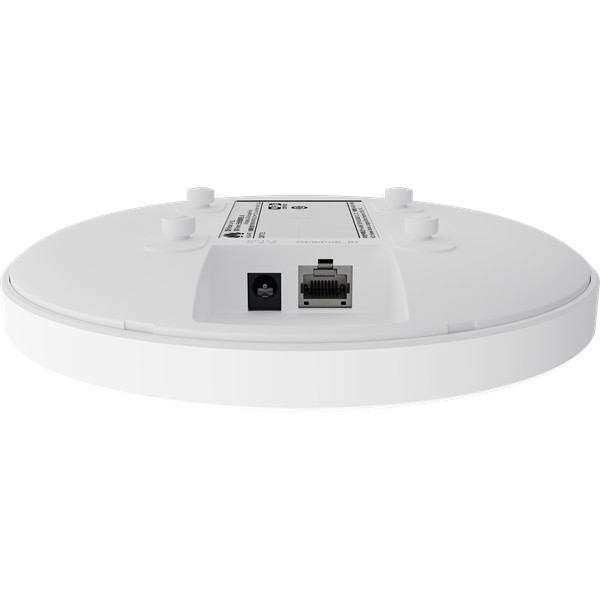

Maximum number of physical ports on the entire device GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
BLE Not supported
Radio number 2
Operating frequency band 2.4GHz,5GHz
MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
Wi-Fi standard 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain 2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain)
Maximum transmit power 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power)
3G/LTE filte (ACC) Not supported
MTBF [year] 205.07
MTTR [hour] 0.5
Frequency stability [ppm] +/-20
802.3bt power supply description No function is limited.
802.3at power supply description No function is limited.
802.3af power supply description No function is limited.
DC power supply description No function is limited.
Adatok
Gyártó:
Huawei eKit
Gyártói cikkszám:
50085706
EAN:
6901443343768
EAN:
6901443343768
Szabvány:
802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Garancia:
36 hónap
Gyártó:
Huawei eKit
Frekvencia:
2.4 GHz és 5 GHz
Kültéri kivitel:
Nincs
Tömeg:
730 g/db
