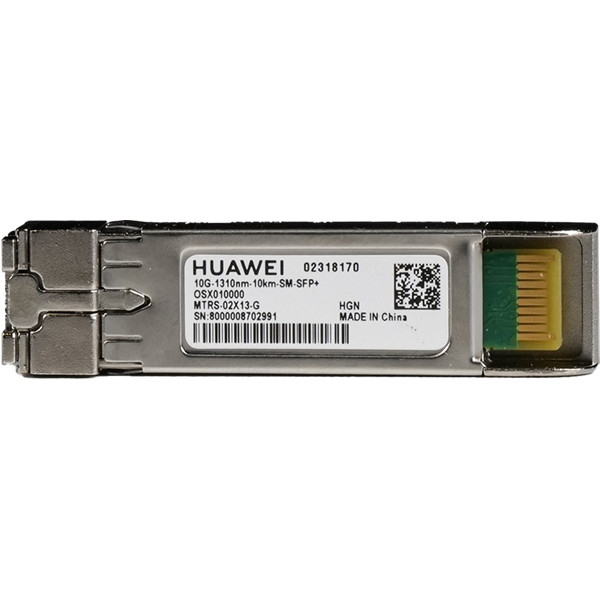

Huawei eKit SFP+ Modul Single-Mode, 10Gbps, 1310nm, 10km - OSX010000

Cikkszám:
CS_350579
Huawei eKit SFP+ Modul Single-Mode, 10Gbps, 1310nm, 10km - OSX010000
Rendelhető
169 840 Ft
Részletek
Part Number 2318170
Model OSX010000
Description Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)
Level-1 category 10GE SFP+ Optical Modules
Module name OSX010000
Connector type LC/DLC
Optical fiber type SMF
Form factor SFP+
Transmission rate [bit/s] 10G
Target transmission distance [km] Single-mode fiber (G.652) (with diameter of 9 µm): 10 km
Application standard/Type 10GBASE-LR
Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)
Type of the end face of the fiber ceramic ferrule PC or UPC
DDM options Supported
Center wavelength [nm] 1310
Overload power (AVG) [dbm] 0.5
Minimum Tx optical power (AVG) [dbm] -8.2
Maximum Tx optical power (AVG) [dbm] 0.5
Minimum extinction ratio [db] 3.5
Rx sensitivity (OMA) [dbm] -12.6
Adatok
Gyártó:
Huawei eKit
Gyártói cikkszám:
02318170
Garancia:
12 hónap
Gyártó:
Huawei eKit
Huawei eKit SFP+ Modul Single-Mode, 10Gbps, 1310nm, 10km - OSX010000
Huawei eKit SFP+ Modul Single-Mode, 10Gbps, 1310nm, 10km - OSX010000
169 840 Ft
