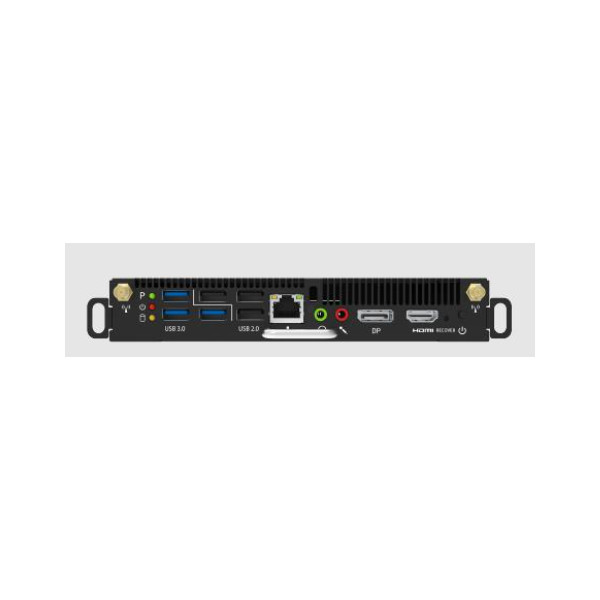

ICD OPS i7 D, using Intel® Core™ i7-10700 processor, conforms to the industry specification of Intel® OPS-C. It supports M.2 SSD storage and DDR4 dual-channel memory. In addition, the ICD OPS i7 D utilizes the latest generation of Intel® UHD Graphics 630 to provide excellent image processing capabilities and supports two independent 4K2K video outputs. It is suitable for scenarios such as digital signage, education and conference whiteboards.
CPU Support ? Intel ® Core™ i7-10700 processor Chipset ? Intel ® H510 PCH Graphic ? Intel ® UHD Graphics 630 Memory ? 16GB DDR4( 8GB*2) Motherboard Interface ? 1 x Power button ? 1 x Recovery button ? 1 x RJ45 ? 3 x USB 3.0 ? 3 x USB 2.0 ? 1 x HDMI1.4 ? 1 x DP1.2 ? 1x Audio line out ? 1x MIC IN Storage ? 1x M.2 2280 ? 512GB SSD storage Expansion ? 1x M.2 2230 ? Wi-fi/Bluetooth 2-in-1 module AC3168 Environment ? Operating temperature: 0°C to 40°C ? Storage temperature: -20°C to 70°C ? Humidity: 5% to 95%(RH) Physical Properties Dimension W*L*H: 195 mm x 180 mm x 30mm Color: Black Net Weight: About 1.5kg Power supply DC 19V/4.74A Power 90W ICD OPS i7 D Certification CCC/SRRC/VCCI/BQB/RoHS/REACH/WEEE/CE/CB etc. Operation System
Windows 10 IoT(EE)
