| General Specifications |
|
| |
|
|
|
1x25mm Tweeter 1x120mm Woofer
|
|
Frequency Response
|
40Hz-20kHz (-6dB)
|
|
Output power
|
50W RMS
|
|
Signal-to-noise ratio
|
>80dB
|
|
Power Supply
|
100-240V ~ 50/60Hz
|
| |
|
| |
|
| |
|
|
Audio Specifications
|
|
| |
|
|
2.4G Wi-Fi transmitter frequency range
|
2412 – 2472MHz (2.4GHz ISM Band, USA and Canada 11 Channels, Europe and others 13 Channels)
|
|
2.4G Wi-Fi transmitter power
|
<20dBm (EIRP)
|
|
2.4G Wi-Fi modulation
|
DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM
|
|
5G Wi-Fi transmitter power
|
<23dBm (EIRP)
|
|
5G Wi-Fi modulation
|
QPSK, BPSK, 16QAM, 64QAM, 256QAM
|
|
5G Wi-Fi transmitter frequency range
|
5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
|
|
Supported audio formats
|
HE-AAC, LC-AAC, MP3, Vorbis, WAV (LPCM), FLAC, Opus
|
| |
|
| |
|
| |
|
|
Dimensions
|
|
| |
|
|
Dimensions (W x H x D)
|
7" x 8.6" x 6.8" (178 x 219 x 172mm) (strap down)
|
|

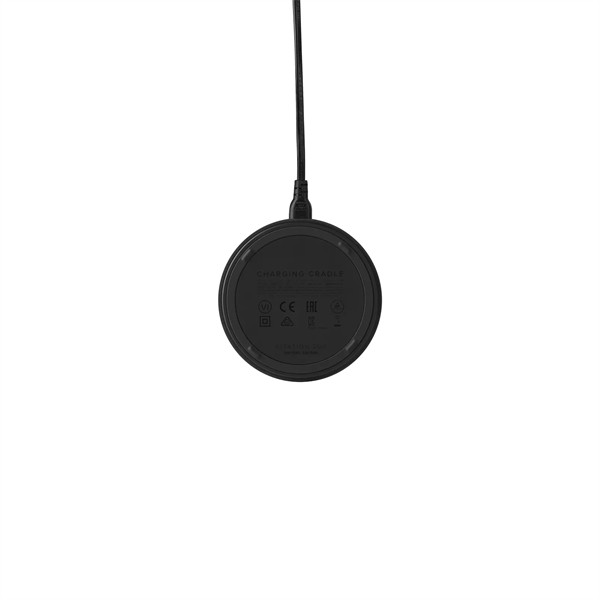

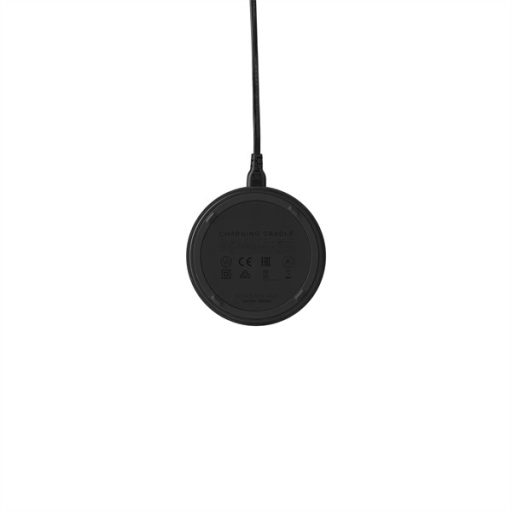

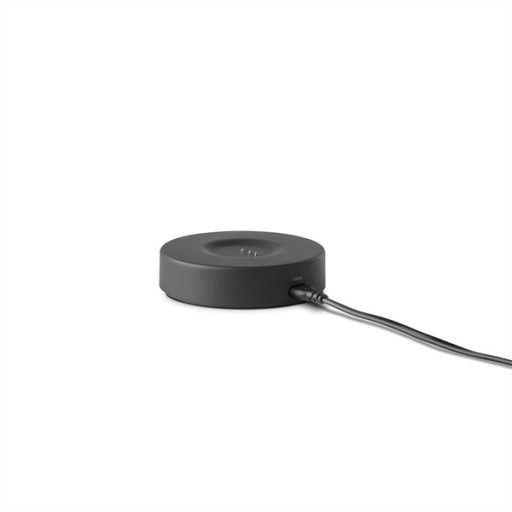

Charging Cradle Dimensions (W x H )
|
4.8" x 0.6 (123 x 15mm)
|
|
Weight
|
2.85 kg (6.3lb)
|
| |
|
| |
|
| |
|
|
Control and Connection Specifications
|
|
| |
|
|
Bluetooth® version
|
4.2
|
|
Bluetooth transmitter frequency range
|
2402 – 2480MHz
|
|
Bluetooth transmitter power
|
<10dBm (EIRP)
|
|
Bluetooth transmitter modulation
|
GFSK,π/4 DQPSK, 8DPSK
|
|
Wireless network
|
802.11 a/b/g/n/ac (2.4GHz/5GHz)
|
| |
|
| |
|
| |
|
|
Battery
|
|
| |
|
|
Battery type
|
Lithium-ion Polymer (3.6V, 4800mAh)
|
|
Battery charge time
|

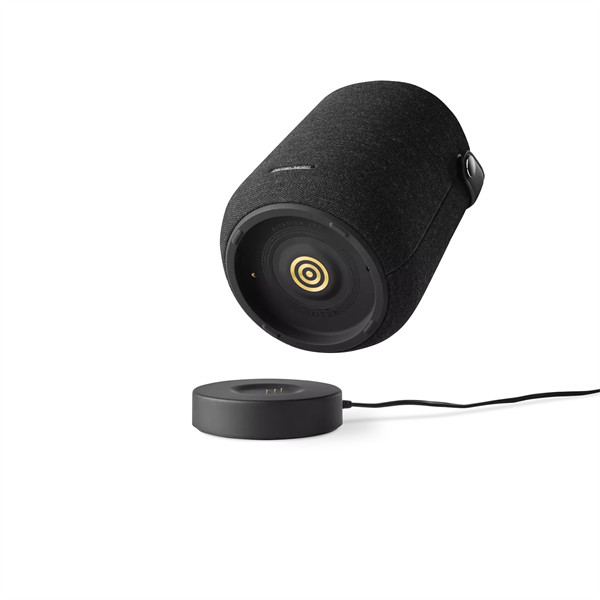

3 hours (Charging Cradle or USB-C 5V/2A )
|
|
Music play time
|
up to 8 hours (varies by volume level and content)
|
