GIGABYTE PC BRIX, Intel Celeron J3455 2.3 GHz, HDMI, DSUB, LAN, WIFI, Bluetooth, 2,5" HDD hely, 4xUSB 3.0

Dimension

56.1 mm x 107.6 mm x 114.4 mm (2.21" x 4.24" x 4.5")

Motherboard Size

100 x 105 mm

CPU

Intel^® Celeron^® Processor J3455, 2.3GHz, 4 core (TDP 10W)

Memory

2 x SO-DIMM DDR3L slots (DDR3 1.35V)
1333/1600/1866 MHz
Max. 16GB

LAN

Gigabit LAN (Realtek RTL8111HS)

Wifi Card

Intel^® Dual Band Wireless-AC 3168

Graphics

Intel^® HD Graphics 500

Audio

Realtek ALC255

VGA Resolution (Max.)

1920 x 1200 @60 Hz

HDMI Resolution (Max.)

4096 x 2160 @60 Hz

Storage

Supports 2.5” thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3)

Expansion Slots

1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

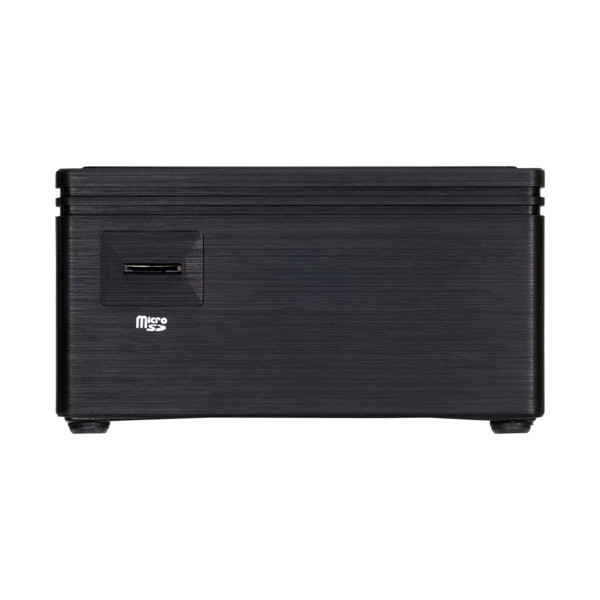

Front I/O

1 x Micro SD card slot

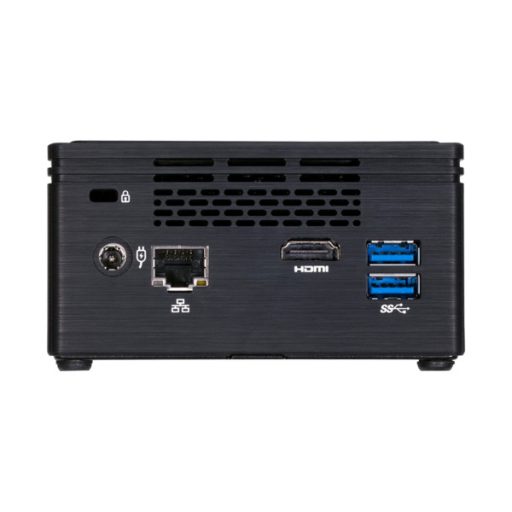

Rear I/O

1 x HDMI (2.0)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot

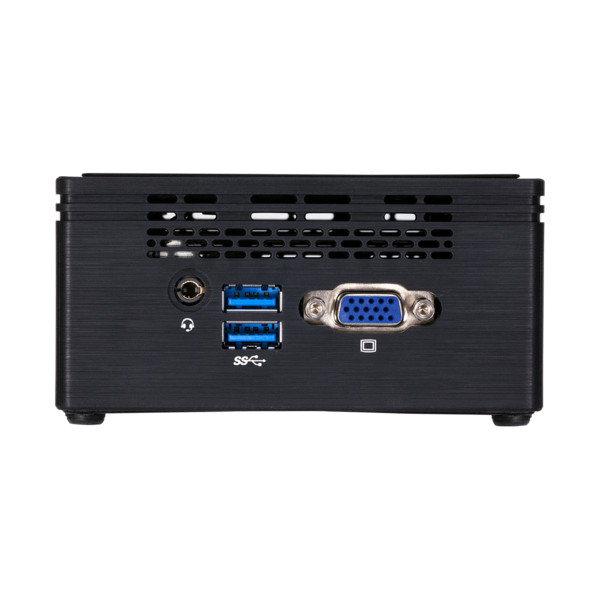

Side I/O

1 x VGA
1 x Headphone/ Microphone jack
2 x USB 3.0

Power Supply

Input: AC 100-240V
Output: DC 19V
2.1A

VESA

Bracket included
Supports 75 x 75 and 100 x 100 mm

Support OS

WIN10 64bit

Environment

System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
