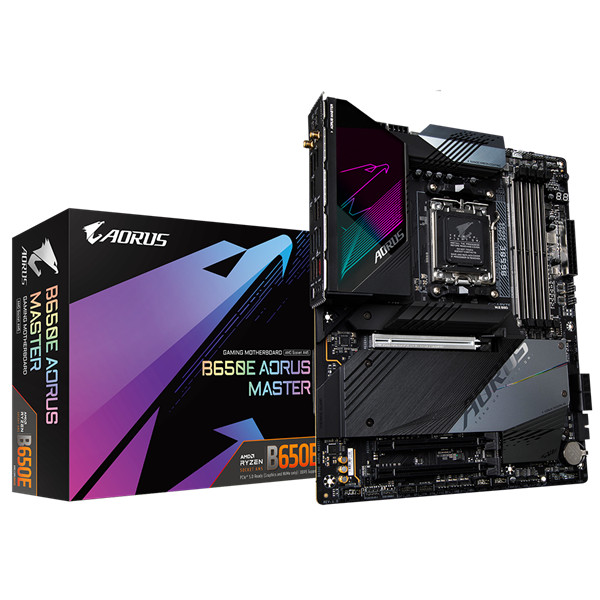

GIGABYTE Alaplap AM5 B650E AORUS MASTER AMD B650, ATX

Name: GIGABYTE Alaplap AM5 B650E AORUS MASTER AMD B650, ATX
Brand: GIGABYTE
SKU: CS_330733
Price: 274330 HUF
Availability: InStock

Cikkszám:

CS_330733

GIGABYTE Alaplap AM5 B650E AORUS MASTER AMD B650, ATX

Rendelhető

274 330 Ft

Részletek

CPU
1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD B650
Memory
1. Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1. 1 x HDMI port, supporting a maximum resolution of 7680x4320@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
(Graphics specifications may vary depending on CPU support.)
Audio
1. Realtek^® ALC1220-VB CODEC
  * The front panel line out jack supports DSD audio.
2. ESS ES9118 DAC chip
3. Support for DTS:X^® Ultra
4. High Definition Audio
5. 2/4/5.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
6. Support for S/PDIF Out
LAN
1. Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
AMD Wi-Fi 6E RZ616 (MT7922A22M)
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)
  * Actual support may vary by CPU.
  * The M2B_CPU and M2C_CPU slots share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU slot is populated, the PCIEX16 slot operates at up to x8 mode.
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
2. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2)
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage Interface
CPU:
1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
  * Actual support may vary by CPU.
2. 3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2D_CPU, M2C_CPU, M2B_CPU)
  * Actual support may vary by CPU.
Chipset:
1. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:
1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support
2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU+USB 3.2 Gen 1 Hub:
1. 4 x USB 3.2 Gen 1 ports on the back panel
CPU + USB 2.0 Hub:
1. 4 x USB 2.0/1.1 ports on the back panel
Chipset:
1. 1 x USB Type-C^® port with USB 3.2 Gen 2x2 support, available through the internal USB header
2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
4. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 4 x system fan/water cooling pump headers
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 1 x CPU cooler LED strip/RGB LED strip header
10. 4 x M.2 Socket 3 connectors
11. 4 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C^® header, with USB 3.2 Gen 2x2 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 1 x THB_U4 add-in card connector
19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI
20. 2.0 module only)
21. 1 x power button
22. 1 x reset button
23. 2 x temperature sensor headers
24. 1 x reset jumper
25. 1 x Clear CMOS jumper

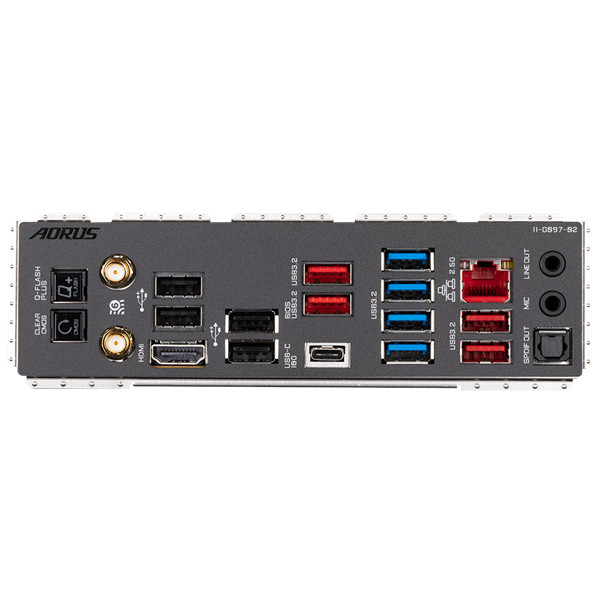

Back Panel Connectors
1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 1 x HDMI 2.1 port
4. 2 x SMA antenna connectors (2T2R)
5. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support
6. 4 x USB 3.2 Gen 2 Type-A ports (red)
7. 4 x USB 3.2 Gen 1 ports
8. 4 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 1 x optical S/PDIF Out connector
11. 2 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
7. Noise detection
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus
Bundled Software
1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm

Adatok

Gyártó:

GIGABYTE

Gyártói cikkszám:

B650E AORUS MASTER

EAN:

4719331848989

EAN:

4719331848989

Garancia:

36 hónap

Gyártó:

GIGABYTE

Wireless:

Van

HDMI:

Van

D-Sub:

Nincs

Kivitel:

Dobozos

Memória órajel:

5200

Memória típus:

DDR5

DVI:

Nincs

Chipset gyártó:

AMD

Display Port:

Nincs

Thunderbolt:

Nincs

USB 2.0:

USB 3.0:

USB 3.1:

Párhuzamos port:

Nincs

Soros port:

Nincs

Foglalat típusa:

AM5

SATA III:

Quad Channel:

Nincs

M.2 foglalat:

Van

Audio:

7.1 HD

Grafikus foglalat:

3 x PCI-Ex16

Form Factor:

ATX

LAN1:

100/1000/2500 Mb/s

Max memória:

128

Memória foglalatok száma:

Raid:

Igen

PS/2 Port:

PCI foglalatok száma:

PCI-E foglalatok száma:

VGA integrált:

Nincs

Tömeg:

1,1 kg/db
