| Cikkszám: |
1 |
349660 |
| Típus: |
1 |

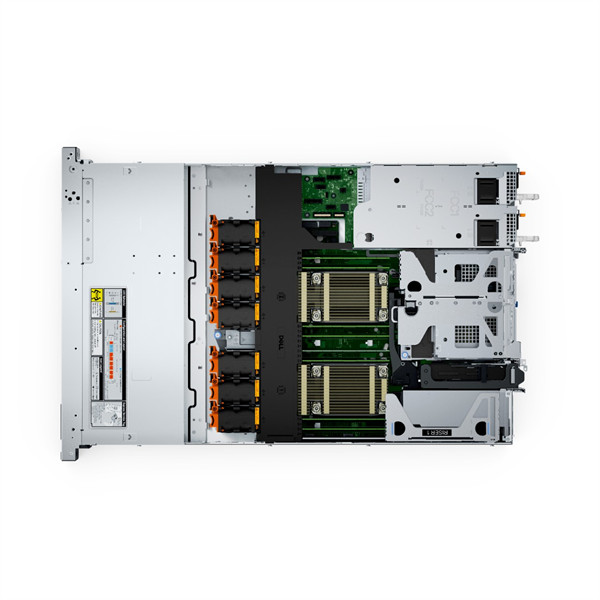

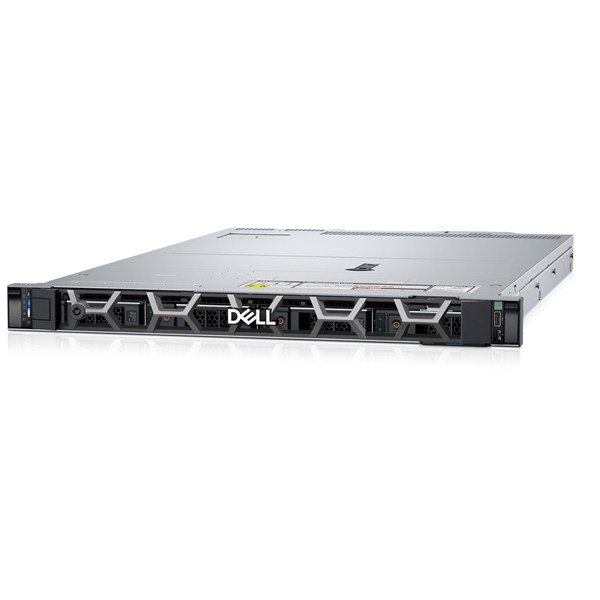

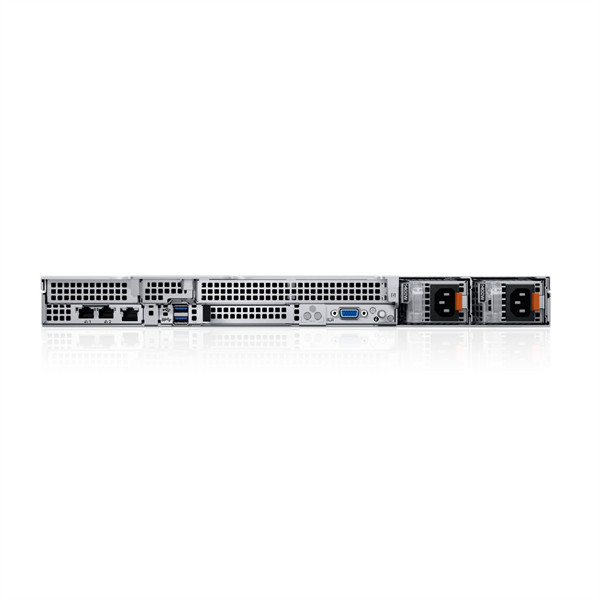

Rack 1U, PowerEdge R660xs-es szerver 16. gen. |
| HD Bay: |
1 |
2.5" Chassis with up to 10 Hard Drives (SAS/SATA), 2 CPU,PERC11 |
| Chipset: |
1 |
Intel C741 Chipset |
| TPM: |
1 |
Trusted Platform Module 2.0 V3 |
| |
| CPU I.: |
1 |
Intel Xeon Gold 5416S 2G, 16C/32T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4400 |
| CPU II.: |
1 |
Intel Xeon Gold 5416S 2G, 16C/32T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4400 |
| Hűtőborda: |
2 |
Heatsink for 2 CPU Shroudless configuration (CPU less than or equal to 150W) |
| RAM 1.: |
2 |
16GB RDIMM, 5600MT/s Single Rank |
| RAM 2.: |
0 |
Opcióban |
| RAM DIMM: |
1 |
5600MT/s RDIMMs |
| |
| BOSS: |
0 |
Opcióban |
| BOSS SSD: |
0 |
Opcióban |
| RAID vezérlő: |
1 |
PERC H755 Rear Load |
| RAID config.: |
1 |
Unconfigured RAID |
| SSD 1.: |
1 |
960GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD |
| SSD 2.: |
0 |
Opcióban |
| HDD 1.: |
0 |
Opcióban |
| HDD 2.: |
0 |
Opcióban |
| Internal: |
- |
- |
| Flex Bay: |
- |
- |
| Optical Drive: |
1 |
No Internal Optical Drive |
| |
| BIOS settings: |
1 |
Power Saving BIOS Settings |
| Fan: |
7 |
Very High Performance Fan |
| PSU: |
2 |
Dual, Hot-Plug, Power Supply Fully Redundant (1+1), 700W MM HLAC (ONLY FOR 200-240Vac) Titanium |
| Tápkábel: |
2 |
C13 to C14, PDU Style, 10 AMP, 6.5 Feet (2m), Power Cord |
| PCIe slots: |
1 |
Riser I/O kártyán |
| Riser (I/O): |
1 |
No PCIe Riser |
| Remote (DRAC): |
1 |
iDRAC9, Enterprise 16G |
| DRAC password: |
1 |
iDRAC,Factory Generated Password |
| |
| Base LAN: |
1 |
Broadcom 5720 Dual Port 1Gb On-Board LOM |
| LAN 1GbE 1.: |
1 |
Broadcom 5720 Quad Port 1GbE BASE-T Adapter, OCP NIC 3.0 |
| LAN 1GbE 2.: |
0 |
Opcióban |
| LAN 10Gb 1.: |
0 |
Opcióban |
| LAN 10Gb 2.: |
0 |
Opcióban |
| FC xGb 1.: |
0 |
Opcióban |
| FC xGb 2.: |
0 |
Opcióban |
| HBA: |
0 |
Opcióban |
| |
| Bezel: |
1 |
LCD Bezel for x8 and x10 chassis |
| Rack Sín: |
1 |
ReadyRails A11 drop-in/stab-in Slide Combo Rails |
| Rack Arm: |
0 |
Opcióban |
| GPU Install kit: |
- |
- |
| GPU: |
- |
- |
| VGA: |
1 |
VGA |
| OS: |
0 |
No Operating System |
| CAL User: |
0 |
Opcióban |
| CAL Device: |
0 |
Opcióban |
| CAL RDS: |
0 |
Opcióban |
