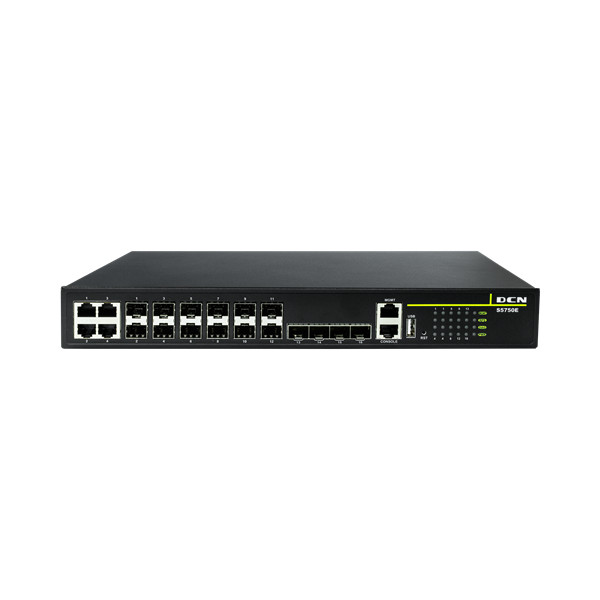

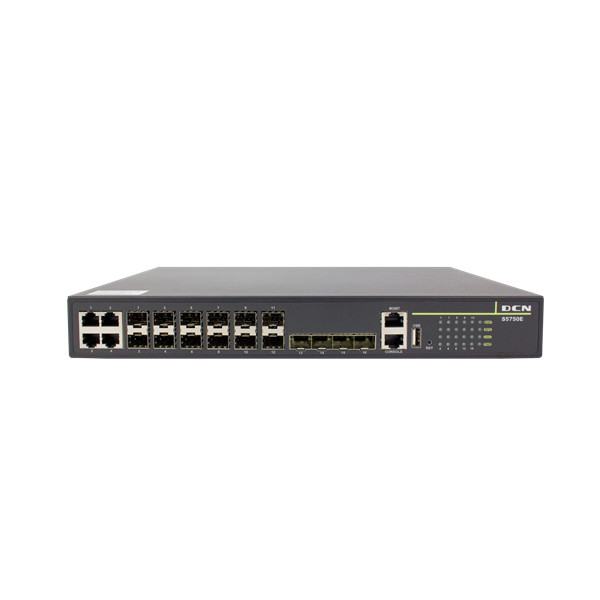

DCN Switch L3 8x 100/1000Base-X SFP + 4x COMBO (RJ45 or SFP) + 4x 1/10GBase-X SFP+, S5750E-16F-SI-D

Cikkszám:
CS_378332
DCN Switch L3 8x 100/1000Base-X SFP + 4x COMBO (RJ45 or SFP) + 4x 1/10GBase-X SFP+, S5750E-16F-SI-D
Rendelhető
509 590 Ft
Részletek

Combo (RJ45 lub SFP)

4

100/1000 Base-X (SFP) ports

8

Ports 1/10G Base-X (SFP+)

4

OOB Management Port (10/100 Base-T RJ45)

1

Performance

Switching matrix

112 Gbps

Data transfer rate

83 Mpps

Packet Buffer

1,5 MB

JUMBO Frame

10 K

Liczba sieci VLAN

4 K

MAC address table

16 K

Multi-broadcast support

4 K

MAC address table additional information

Shared MAC address array for unicast and multicast (1:1 ratio)

ACL Table

1,4 K

Additional information about the ACL board

Shared ACL array for input and output ACLs (1:1 ratio)

Liczba interfejsów Vlan (IP)

1 K

Reflection factor RL APC

1 K

Additional information about the routing table

Shared routing table for IPv4 and IPv6 (4:1 ratio)

ARP table

4 K

CPU Clock

800 MHz

Number of Base-T ports (RJ45)

4

Available Base-T (RJ45) port speeds

10 ; 100 ; 1000

Number of Base-X ports (Optical)

16

Available Base-X (Optical) port speeds

1000; 10G

Ports 1/10G Base-X (SFP+)

4

Console port- RS-232 (RJ45)

Yes

OOB Management Port

Yes

Port USB

Yes

PoE available

No

Functionality of VSF

Yes

Funkcjonalność PIM Router

No

Power supply

230 V + 48V DC

RPSU

No

Hot Swap PSU

No

RPS

Yes

Cooling

Active

Flash memory

160 MB

RAM memory

512 MB

Features

Enhanced Accessibility Features

IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.3 ad LACP (128 groups per device/8 ports per group), Virtual Cable Testing, DDM, LLDP, Loop Guard, MRPP

Traffic control

IEEE 802.1Q (4094 VLAN's), Port-based VLAN, Protocol-based VLAN, IP subnet based VLAN, Voice VLAN, MAC VLAN, source/destination IP/MAC LACP algorithm (load balance), GVRP, IEEE 802.1ad Vlan Stacking (QinQ), Flexible QinQ

Security

Layer 2 MAC Filtering, BPDU Tunnel, RADIUS and TACACS+ Login Authentication and Authorization, TACACS+ Accounting/Auditing, SSH v1/v2, DHCP/DHCPv6 snooping, IPv4/IPv6 Source Guard, Port Security, IEEE 802.1x port-based /mac- based

QoS

802.1p Priority Queues per Port, 802.1p Queuing method, Trusted COS/TOS/IP Precedence/DSCP/Port number, Broadcast Storm Control, Rate Limiting, port based, Strict priority, Weighted Deficit Round Robin, Weighted Random Early Detection, Strict priority in Weighted Deficit Round Robin

L2/L3 multicast

Multicast VLAN, IGMP v1,v2, v3, IGMP Query, IGMP Snooping (v1,v2,v3), IGMP Snooping Fast Leave(v2,v3), PIM-DM/SM/SSM, anycast RP, IPv6 MLD v1/v2 Snooping

Routing

Static route IPv4/IPv6, RIP v1, v2/RIPng, OSPF v2/OSPF v3, BGP/BGP4+

L3 IPv6

IPv4/IPv6 Dual Protocol Stack, IPv6 address, IPv6 Tunneling

Management

Console Port (CLI), RJ45 Management Port, USB2.0, GUI, Telnet, SNMP, TFTP/FTP, Configuration Backup and Restore, Multi-Level CLI, DHCP Client/Relay/Server, DHCP Relay per VLAN, DHCP Option 43/60/82, DHCPv6 Option 37/38, DHCPv6 Relay/Server, NTP, Port Mirroring for IP/TCP/UDP, RSPAN, OAM EFM/CFM

MIB

RFC 1066 TCP/IP-based MIB, RFC1213, 1157 SNMPv2c/v3 MIB, RFC1493 bridge MIB, RFC 2674 bridge MIB extension, RFC1643 ethernet MIB, RFC1757 RMON group 1/2/3/9, RFC 2925 Remote Management MIB, RFC 2233 (rfc2233) - SMIv2 MIB

Electric

Power Supply

230 V AC

Redundant power supply

48 V DC, RPS

Maximum power consumption

? 22 W

Adatok
Gyártó:
DCN
Gyártói cikkszám:
S5750E-16F-SI-D
Garancia:
60 hónap
Gyártó:
DCN
Rack-be szerelhető:
Van
Switch típus:
Modular
Menedzselhetőség:
Teljes
Portok száma:
16
Port típusa:
1Gb Réz
Switching kapacitás:
112
Menedzselhető:
Van
PoE (Power over Ethernet):
Nincs
Áteresztő képesség:
83
SFP port:
12
Routing / Switching:
Layer 3 Lite
