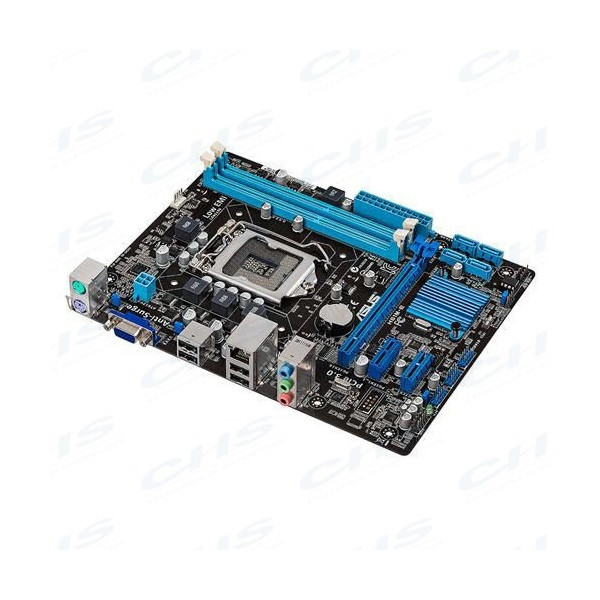

ASUS Alaplap S1155 H61M-K INTEL H61, mATX

Name: ASUS Alaplap S1155 H61M-K INTEL H61, mATX
Brand: ASUS PCC
SKU: CS_160039
Price: 31230 HUF
Availability: InStock

Cikkszám:

CS_160039

Rendelhető

31 230 Ft

Részletek

CPU
Intel® Socket 1155 for 3^rd/2^nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
Supports CPU up to 77 W
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel® H61(B3)
Memory
2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* 1600MHz and higher frequency is supported by Intel® 3rd generation processors.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default.
Graphic
Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1024 MB
Expansion Slots
1 x PCIe 3.0/2.0 x16 *¹
2 x PCIe 2.0 x1
Storage
Intel® H61(B3) chipset :
4 x SATA 3Gb/s port(s), blue
LAN
Realtek® 8111F, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *²
USB Ports
Intel® H61(B3) chipset :
8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
Special Features
ASUS Exclusive Features :
- AI Suite II
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x Chassis Fan connector(s) (4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)
Accessories
I/O Shield
2 x SATA 3Gb/s cable(s)
BIOS
64Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0, EUP-ready
Manageability
WOL, PXE, PME Wake Up
Support Disc
Drivers
ASUS Utilities
ASUS Update
Anti-Virus Software (OEM Version)
Form Factor
uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
Note
*1: Intel® 3rd Generation Core™ processors support PCIe 3.0 speed.
*2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

Adatok

Gyártó:

ASUS PCC

Gyártói cikkszám:

H61M-K

EAN:

4716659587590

EAN:

4716659587590

Garancia:

36 hónap

Gyártó:

ASUS

Wireless:

Nincs

Kivitel:

Dobozos

Memória órajel:

1600

Memória típus:

DDRIII

Chipset gyártó:

Intel

USB 2.0:

USB 3.1:

Foglalat típusa:

S1155

Audio:

7.1 HD

Grafikus foglalat:

PCI-Ex16

Form Factor:

mATX

LAN1:

10/100/1000 Mb/s

Max memória:

Memória foglalatok száma:

Raid:

Nem

PS/2 Port:

PCI-E foglalatok száma:

VGA integrált:

Nincs

SATA II:

Tömeg:

670 g/db
